Chair Durability & Stability Testing Equipment

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Chair Durability & Stability Testing Equipment

Product Details:
Place of Origin: china
Brand Name: HUST Tony
Model Number: TNJ-002
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: contact saler
Packaging Details: Plywood BOX
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per month
Detailed Product Description
Model Number: TNJ-002 Iterm: Comprehensive Furniture Testing Equipment - EN1728:2012 Chair Test
Minimum Order Quantity: 1 Set Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union Place Of Origin: Guangdong,China(Mainland)
Standard: EN1728:2012
High Light:

Comprehensive Furniture Testing Equipment

,

PLC Control Chair Durability Testing Equipment

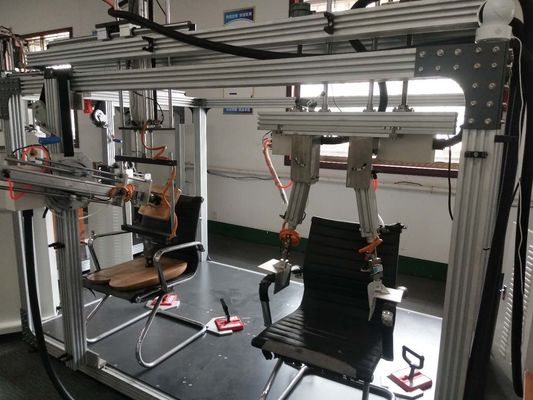

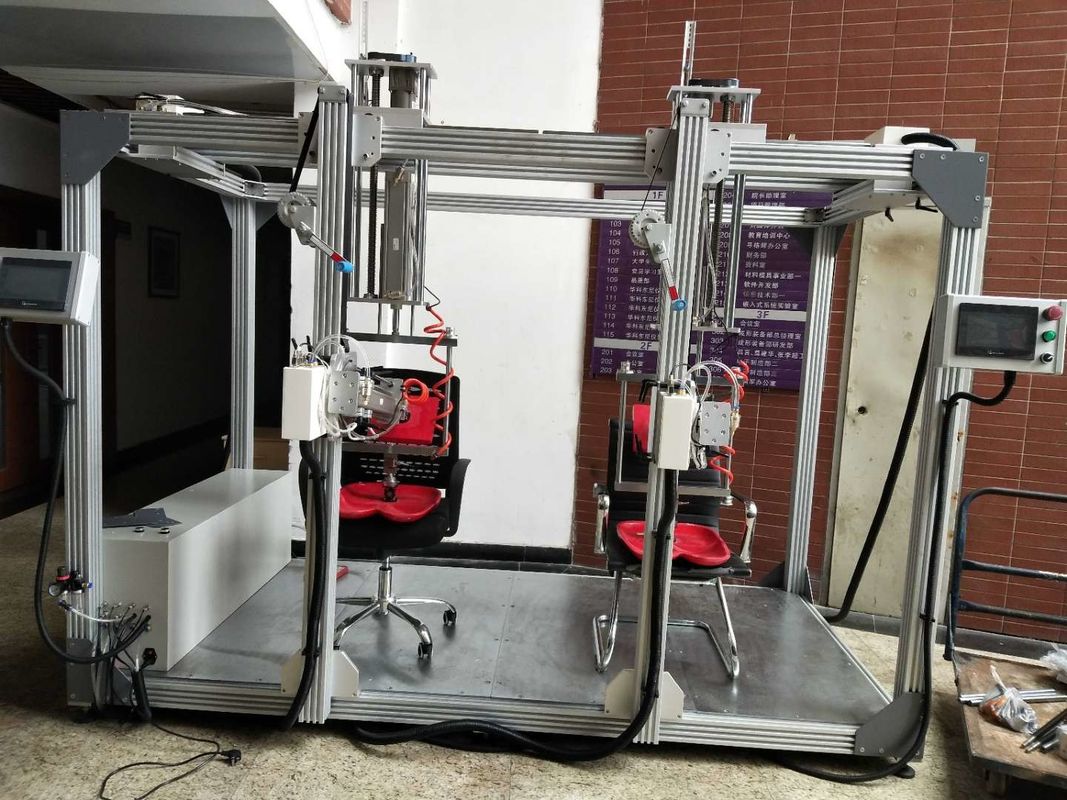

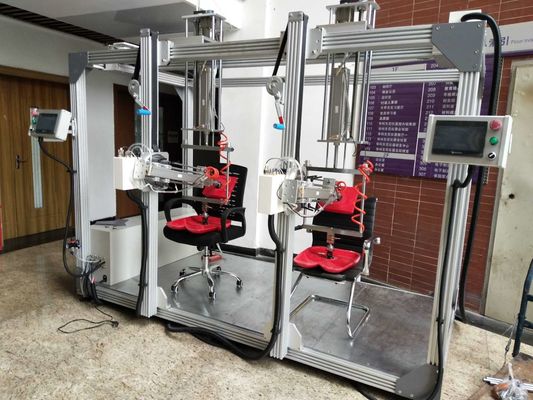

chairs Tester is used to test the strength and durability of each part of furniture through each part of furniture is under one-off or repetitive load in the normal use or wrong use condition.It is used for testing the mechanical performance of all kinds of chairs.



Technical parameters:

Specification of frame:3m x 3 mx2.3m,(L×W×H), it is made of 80x80mm aluminum

Loading cylinders:Five horizontal and Five Vertical, diameter:50mm,route:300mm,

Loading force value(Max) on the theory: 1500Nþ Force value induction:high-precision power sensor

Max Capacity:3KNþ (3000N)

Control way:PLC control

Air source:Air supply input is 0.4Mpa-0.8Mpa. (6kgf/cm^2 or above, supplied by customer themselves)

>>> Additional component

- Having ‘connectors’ on control panel for ease integration

- Stopper 12mm thickness

This test rig can be used for doing the horizontal/vertical static loading test and also can do horizontal /vertical durability test.

The tester adopts the structure of frame to design.The frame is made of high quality industrial aluminum, beautiful and generous.The adjustable part of the frame adopts pulley structure to design in order to adjust the loading position to adapt to different specifications of sample.The position handle is convenient to locate so that the tester can improve the efficiency of work.

The fixed block at the bottom can be adjusted freely different position to adapt to different specifications of sample.



Feature:

1.Europe standard aluminum profile
(Thickness and strength 5 times higher than industry)
2. U.S.-origin high-precision force sensors
3. Ades a cylinder
4. Portable magnet retainer
5. Customize the 1 to 1 load block to standard



Standards

i) Seat and back static/durability test--EN1728:2012 6.4/ 6.17

ii) Seat front edge static test--EN1728:2012 6.5

iii) Armrest upward and downward static test--EN1728:2012 6.13/6.11

iv) Legs forward/sideways static test--EN1728:2012 6.15/6.16

v) Back impact test--EN1728:2012 6.25

vi) Seat impact test--EN1728:2012 6.24
