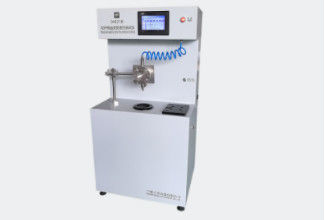

ASTM F1670 & ISO 16603 Protective Clothing Penetration Testing Instrument

Description:Blood Penetration is used to evaluate the resistance of materials used in protective clothing to penetration by synthetic blood under conditions of continuous liquid contact. Protective clothing pass/faildeterminations are based on visual detection of synthetic blood penetration. This test method is not always effective in testing protective clothing materials having thick, inner liners which readily absorb the synthetic blood.

Feature:

1. The use of 7 inch industrial color LCD touch screen, Chinese and English menu;

2. The pressure point pressure method is fully automatically adjusted to ensure the accuracy of the test.

3. Special stainless steel penetration test groove to ensure that the specimen is firmly clamped, and to prevent synthetic blood splashing around;

4. The use of imported pressure sensors, accurate data, high measurement accuracy.

.

1. Measuring pressure points: 0kPa; 1.75kPa;3.5kPa;7kPa;14kPa;20kPa;

2. Pressurized mode: automatic adjustment;

3. Timing range: 0 to 99.99min;

4. Sample size: 75mm×75mm;

5. Pressure area: 28.27cm2;

6. Blocking net: 304 stainless steel, 50% ≥ open space, bent at 14kPa≤5mm;

7. Clamp torque: 13.5N.m;

8 Gas source: ≥0.4kg/cm2;

9. Power source: AC220V±10% 50HZ;

10. Function: 250W;

11. Net weight: 530×250×650mm;

12. Form factor: 15Kg.

Standard: GB19082; ISO16603; ASTM F1670 &1671; YY/T0700
