Elcetronic 150KN Lab Testing Equipment Dual Arm Computer Servo Tensile Strength

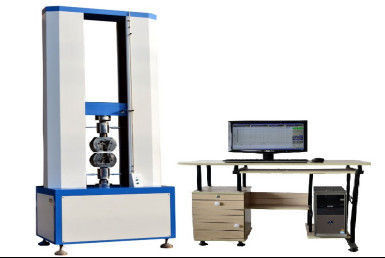

Large Image :  Elcetronic 150KN Lab Testing Equipment Dual Arm Computer Servo Tensile Strength

Product Details:
Place of Origin: Guangdong,China(Mainland)
Brand Name: HTI
Certification: GB, JIS, ASTM, DIN
Model Number: HTP-004B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Package 118cm*80cm*230cm
Delivery Time: 15-20 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1 sets per month
Detailed Product Description
Power: Electronic Model Number: HTP-004B
Product Name: Tensile Testing Machine Stroke: 800mm
Test Speed: 0.01 - 500mm / Min Net Weight: 520kg
High Light:

laboratory testing instrument


lab test machine


Dual Arm Tensile Testing Machine


Electronic 150KN Dual Arm Computer Servo Tensile Strength Lab Testing Equipment





This universal tensile machine can do various tensile testing in the field of rubber,leather products, plastics,chipboards, foam, plastic, film, flexible packaging, pipes, textiles, fibers, nanomaterials, polymers, composite materials, synthetic materials, packaging, paper, wire and cable, fiber optic cable, wirecables, seat belt, seat belt, leather belt, shoes, tape, polymer, copper, spring steel wire, stainless steel, castings, brass, non-ferrous metals, car parts, alloys and other non-metallicmaterials and metallic materials tensile, compression, bending, tearing, and 90 ° peel, 180 ° peel, shear adhesion, pull-out strength, an extension of the elongation test.





Computer software to set speed, the load fracture (rupture), the running time,especially with the manual operation box: convenient calibration and fitted to hold the specimen positioning 

 Automatically determine the fracture of materials, when crushing it is automatic shutdown and automatically return

Curve types: curve longitudinal; The horizontal axis can be arbitrarily set.

The load to displacement;the load to time; displacement to time. Stress to strain; strain to time; stress to time.





Maximum force capacity

15000kg (150KN) load cell for push and pull, 0.4%~100%(0.5)

Force measurement accuracy

within 0.5%

Test stroke

800mm, effective test width: 400 mm, or specified per customer

Test force loading the measuring range

0.4% -100% FS


maximum test force of 1/200000

Test speed

0.01 - 500mm / min. or specified per customer.

Displacement measurement accuracy

± 0.5% of indication

Test force control rate adjustment range

0.05% -5% FS / S

Control accuracy

± 0.5% when the control rate  ≥ 0.05% FS / S

Machine size


Dynamic system

servo motor + hight precision ball screw




1 no Load cell, standard grips, operation software, English manual books and Video.

Net Weight

520kg, Gross weght:600 kg (after wooden package)

Package of strong wooden box size





Competitive Advantage:


1, high-precision: ±0.5%, high-resolution: 1/200000;

2, selectable programmable control: to achieve loop control of load, position, deformation, and time;

3, real-time acquisition,refresh curve and record test data, a variety of Report print Output;

4, can be used for the retention test (Constant);

5, can be used for products of low cycle (repeatedly) fatigue test;

6, the unit of force values​​: N, KN, Kgf, Lbf ,unit of length: mm, cm, in freely convertible





ASTM D751,ASTM D882,ASTM D1117,ASTM D1445,ASTM D1593,ASTM D1683,ASTM D2209,ASTM D5034,ASTM D5053,ASTM D1424,ASTM D2212,ASTM D2262,ASTM D2261,ASTM D4704,ASTM D4705,ASTM D5733,ASTM D5734,ASTM D2207,ASTM D412,ASTM D638     ASTM D3137,ASTM D3574,ASTM D624,ASTM D3574,ASTM D4964,ASTM D2061,ASTM D5169,ASTM D5170,ASTM D2558,ASTM D413
