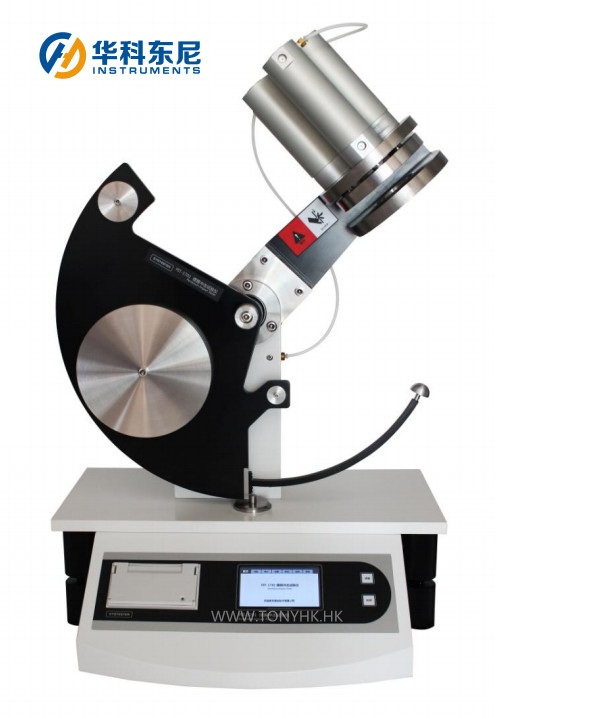

Film Impact Tester Pendulum Impact Testing Machine Meet ASTM D3420

Large Image : Film Impact Tester Pendulum Impact Testing Machine Meet ASTM D3420

Product Details:

Place of Origin:	china
Brand Name:	HUST Tony
Model Number:	HTZ-017

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	contact saler
Packaging Details:	Plywood BOX
Delivery Time:	7-15 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Model Number:	HTZ-017	Iterm:	Film Impact Tester
Minimum Order Quantity:	1 Set	Delivery Time:	15 Working Days
Payment Terms:	T/T, L/C, Western Union	Place Of Origin:	Guangdong,China(Mainland)
Certificate:	GB 8809-88、ASTM D3420、NF T54-116
High Light:	ASTM D3420 Film Impact Tester , 2J Pendulum Impact Testing Machine , 3J Pendulum Impact Testing Machine

Application :Pendulum Impact Tester is professionally applicable to the determination of resistance to impact-puncture penetration of films, textile , composite films, aluminum foils and other materials.

Technical indexes

Impact capacity: 1J, 2J, 3J, 5J (optional)
Resolution: 0.001J
Impact head size: Ф25.4mm, Ф19mm, Ф12.7mm (Customized available)
Specimen holder size : Ф89mm, Ф60mm
Specimen size: 100 mm x 100 mm, Ф100mm
Gas resource pressure: 0.3MPa - 1.0MPa
Gas resource interface: Ф6mm
Instrument dimension: 492mm(L) × 383mm(B) × 752mm(H)
Power supply: AC 220V 50Hz
Net weight: 44kg

Standard

GB 8809-88,ASTM D3420,NF T54-116

Features

1. TFT screen display results

2. Specimen pneumatic clamp

3. Pendulum pneumatic lock and release

4. Pendulum capacity easy to change

5. Statistic calculation: max, min, mean and standard deviation

6. Micro-printer prints mini-report

7. RS-232 standard communication port.

accessories:

mainframe, 1J pendulum, 2J capacity poise, 3J capacity poise, Ф25.4mm impact head, Ф19mm impact head, sample holder, micro-printer.

Optional parts: Professional software, non-standard impact head, O-rings.
