Product Details:
Payment & Shipping Terms:
|
| Model Number: | HTZ-022 | Iterm: | Water Vapor Permeability Tester |
|---|---|---|---|
| Minimum Order Quantity: | 1 Set | Delivery Time: | 7 Working Days |
| Payment Terms: | T/T, L/C, Western Union | Place Of Origin: | Guangdong,China(Mainland) |
| Certificate: | CE | Standard: | ISO 15106-2, ASTM F1249, GB/T 26253-2010, TAPPI T557, JIS 7129 |
| High Light: | Water Vapour Permeability Test Equipment,Water Vapour Permeability Test Machine,ASTM F1249 Water Vapor Permeability Tester |
||

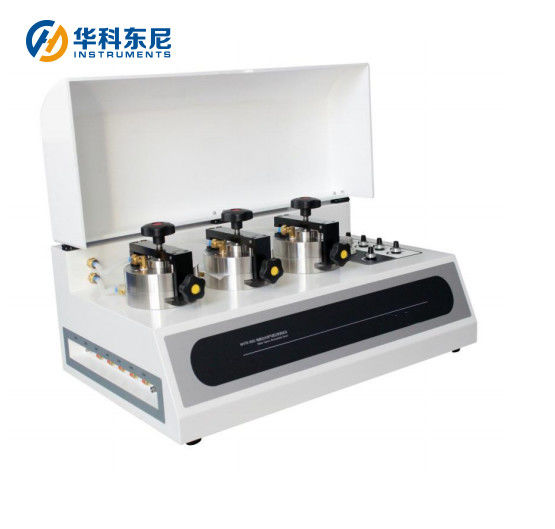

Application : Water Vapor Permeability Tester is based on the infrared sensor method and available for the water vapor permeability test of flexible films, sheeting and packages. It can test 3 specimens in one operation with independent results.
Films: Plastic films, aluminum foil, aluminized films, plastic composite films, paper-plastic composite films, coextruded films, aluminum foil composite films and many others.
Packages: Plastic, rubber, paper, paper-plastic composite, glass and metal packages, e.g. red wine bottles, blister, various plastic bottles, Coke bottles, peanut oil packages, Tetra Pak materials, vacuum bags, metal three-piece cans, plastic packages for cosmetic, soft tubes for toothpaste, jelly and yogurt cups.
Technical indexes
Test range:
Film: 0.005-42 g/m2·24h (Standard)
0.05-1000 g/m2·24h (Optional)
Resolution: 0.001 g/m2·24h
Package: (optional) 0.0001~0.3 g/pkg·d
Resolution: 0.00001g/pkg·d
Specimen amount: 3 specimens, independent
Temperature range: 5C – 95C
Temperature accuracy: ±0.1C
Humidity range: 0%RH,35%RH-90%RH,100%RH, standard condition 90%RH
Humidity accuracy: ±1%RH
Test area: 50cm2
Specimen size:
Film: size: >=150mm * 94mm;
thickness: less 5mm Package:
max size: D120mm * 400mm
Carrier gas: 99.999% Nitrogen
Carrier flow: 0~200ml/min
Gas interface: 1/8inch
Power supply: AC 220V 50Hz
Dimension: 730mm(L) * 590mm(W) * 350mm(H)
Net weight: 56kg
Standard
ISO 15106-2, ASTM F1249, GB/T 26253-2010, TAPPI T557, JIS 7129
Configuration
Main unit, computer, W-TRANS software, temperature controller, tank regulator, PCIE card, cable, sample cutter, vacuum grease.
Optional:
Package fixtures, reference film, vacuum grease, sample cutter, DSM system.
Feature:
Contact Person: linmei
Tel: 86-13421721188
