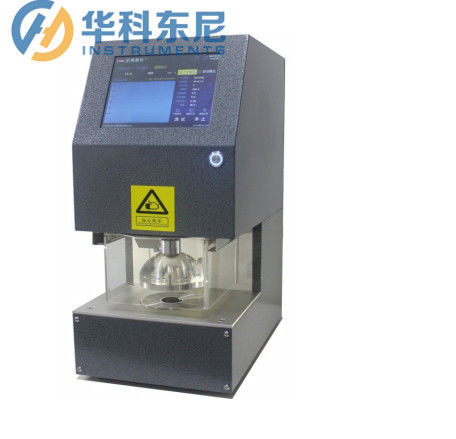

ISO 2758 ASTM D774 Bursting Strength Tester Machine For Foil / Paper

Large Image : ISO 2758 ASTM D774 Bursting Strength Tester Machine For Foil / Paper

Product Details:

Place of Origin:	china
Brand Name:	HUST Tony
Model Number:	HTZ-008B

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	contact saler
Packaging Details:	Plywood BOX
Delivery Time:	7-15 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Model Number:	HTZ-008B	Iterm:	Bursting Strength Test Equipment Of Foil & Paper
Minimum Order Quantity:	1 Set	Delivery Time:	15 Working Days
Payment Terms:	T/T, L/C, Western Union	Place Of Origin:	Guangdong,China(Mainland)
Certificate:	ISO 2758, APPITA AS, 1301.403, ASTM D774, CPPA D.8, JIS 8112, SCAN P 24, TAPPI T403.
High Light:	ASTM D774 Bursting Strength Tester , ISO 2758 Bursting Strength Tester , Bursting Strength Apparatus

ISO 2758 And ASTM D774 Bursting Strength Test Equipment For Foil / Paper

Application : It is suitable for bursting strength test of various kinds of foil, paper etc, especially

in pharmaceutical and food industries.

Principle

HTZ-008B is based on Mullen theory, the piston injects silicon oil into the chamber covered by

plastic membrane which contacts with the test sample continuously until the sample bulges to

break, the maximum pressure is just the result of bursting strength.

Features

Embedded system, remote service
Touch screen operation
8 inch TFT LCD display parameters and results
Bilingual language display
Sample pneumatic clamping
Highly accurate pressure sensor inside
Safety mask, body protection
Test automatically starts and stops
Micro-printer prints mini-report
Test curve display
Interface: WIFI, RS232
Supports DSM system (DSM, lab data management system)

Technical indexes

1.Test range:50-2,000kPa ( 7–300psi,0.5–20.4kgf/cm²)

2.Resolution: 0.1kPa

3.Error of reading: ±1%

4.Fluctuation of Reading: ≤1%

5.Oil injection rate:(95±5) ml/min

6.Sample clamping pressure: 100~1400kPa, Adjustable

7.System leakage: <10%P max @ 1min

8.Upper clamp plate hole size: (30.5±0.05)mm

9.Lower plate hole size: (33.1±0.05)mm

10. Sample thickness: Up to 21mm.

11. Plastic membrane resistance: (30±5)kPa @ Bulge (9±0.2)mm

12.Gas supply: Air, 0.6MPa-0.8MPa (self-provide)

13. Gas consumption: 0.4m3/h

14. Dimension: 380mm ×240 mm ×530 mm

15. Power supply: AC220V 50Hz

16.Net weight: 33kg

Standard : ISO 2758, APPITA AS, 1301.403, ASTM D774, CPPA D.8, JIS 8112, SCAN P 24, TAPPI T403.

Configuration

Standard

configuration: Mainframe, silicon oil(1 bottle), plastic membrane, power line, calibration plug.

Optional:

Micro-printer paper, DSM system.

Note: Specifications are subject to change without prior notice.
