Product Details:
Payment & Shipping Terms:
|

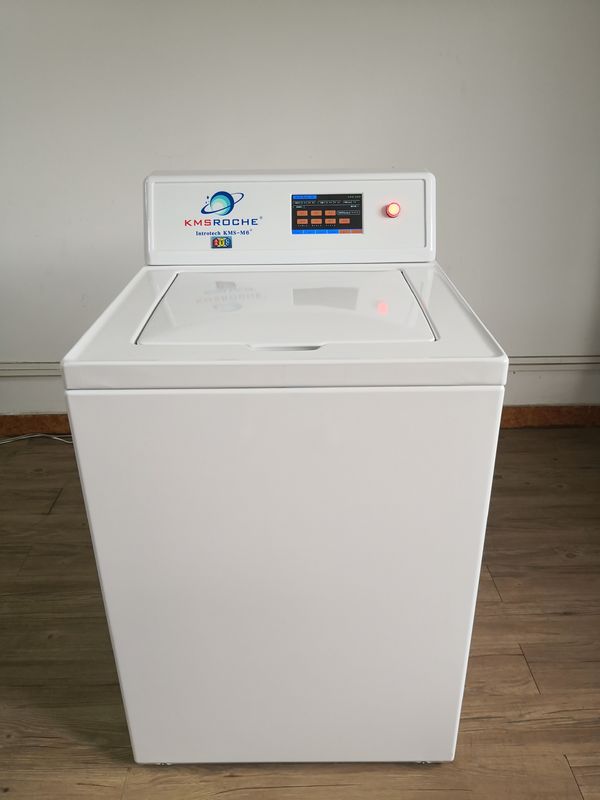

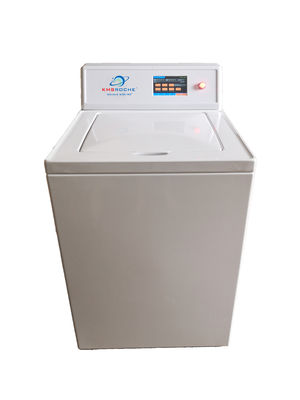

| Model Number: | KMS-M6 | Iterm: | AATCC TM88 Shrinkage Wash Machine |
|---|---|---|---|
| Minimum Order Quantity: | 1 Set | Delivery Time: | 7 Working Days |
| Payment Terms: | T/T, L/C, Western Union | Place Of Origin: | Guangdong,China(Mainland) |
| Certificate: | CE | Standard: | AATCC TM88B, TM88C, 124, 135, 143, 150, LP1 |
| High Light: | 10.5Kg AATCC Shrinkage Wash Machine,AATCC TM88B Approved Washer,AATCC Standard Washer 10.5Kg |
||
▲ Normal
▲ Permanent Press ▲ Delicate
▲ Custom
▲ Drain & Spin Laundry Capacity : 10.5kg
Voltage : 220V / 50/60 Hz
Power : 1.5kW
Dimension : 1100 x 650 x 710mm (H x L x D)
(Machine doesn’t have built-in heater. Hot water need to be supplied by extra water
heating equipment.)
Washing Program Parameter
Water Level Setting 19 +/- 1 gal , 19 +/- 1 gal , 19 +/- 1 gal
Agitation Speed 86 +/- 2 spm, 86 +/- 2 spm , 27 +/- 2 spm
Washing Time 16 +/- 1 min ,12 +/- 1 min , 8.5+/- 1 min
Final Spin Speed : 660 +/- 15 rpm , 500 +/- 15 rpm , 500 +/- 15 rpm
Final Spin Times 5 +/- 1 min , 5 +/- 1 min ,, 5 +/- 1 min
Functions
▲ Industrial touch screen controller adopted; Chinese and English language available; meet the need of different occasions.
▲ Available to measure, display and control the water temperature in the tank. Adjusting the ratio of cold water and hot water to reach a certain temperature.
▲ With abundant functions for own customization. Able to set all washing parameters to meet different requirement.
▲ Manual model can run the programs separately, including cold/hot water adding, washing, draining and spinning.
▲ Calibration function: water temperature, water volume, agitation speed & spin speed calibration.
▲ Humanized design for lock (enable or disable).
▲ Flashing indicator to remind the operator for end of test .
▲ Trouble alarming function, easy for trouble-shooting.
Design of apparatus
△ Steel cylinder with ceramic coating, Stainless washing tank △ High-power variant motor, stable and durable
Service and Support
Our company focuses on research and development , we were produced some intelligent testing equipments over thirteen years, we continue to provide stable performance, high-quality equipment for product quality testing industry.At present, the company has 14 utility model patent technologies,2 patents for invention and participated in the drafting and formulation of nine national standards.
In cooperation we has a variety of testing units, industries, association partners and friends, accumulated a large number of detection industry insights and contacts, for those friends who just come into testing industry, we can learn from each other to communicate, explore the problems and difficulties encountered in testing.
