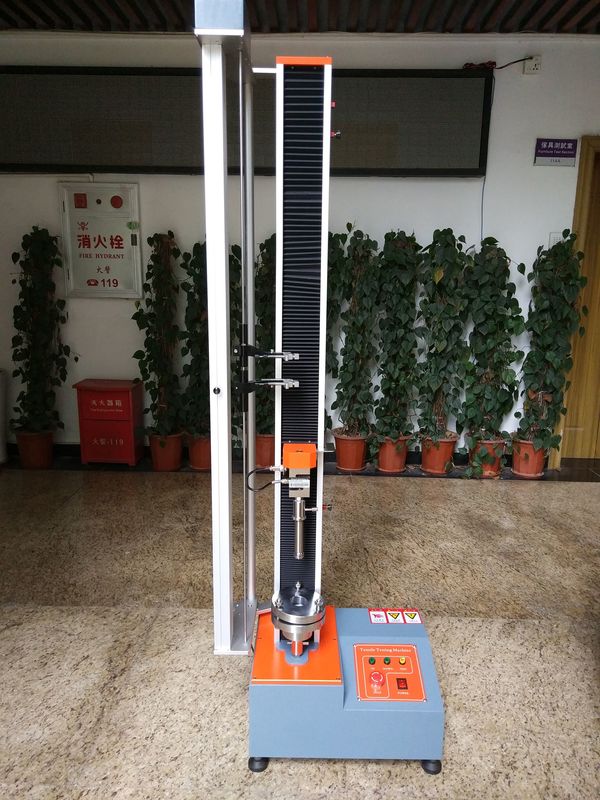

Single Arm Computer Servo Tensile Strength Testing Equipment HTP-002

large.img.alt
small.img.alt small.img.alt

Large Image :  Single Arm Computer Servo Tensile Strength Testing Equipment HTP-002

Product Details:
Place of Origin: china
Brand Name: HUST Tony
Model Number: HTP-002
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: contact saler
Packaging Details: Plywood BOX
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per month
Detailed Product Description
Model Number: HTP-002 Iterm: Single Arm Computer Servo Tensile Strength Testing Equipment
Minimum Order Quantity: 1 Set Delivery Time: 7 Working Days
Payment Terms: T/T, L/C, Western Union Standard: GB,ISO7500/1,JJG475-88,ASTME4,DIN5122,JISB7721/B7733,EN1002-2,BS1610, CNS9471/9470 And Other Standards Etc.
High Light:

Single Arm Tensile Strength Testing Equipment

,

Computer Servo Tensile Strength Tester

,

JJG475-88 Tensile Strength Testing Equipment

1. Deformation under defined load: Test deformation under defined load of tested sample

2. Load under defined deformation: Test load under defined deformation of tested sample

3. Software can issue report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

4.1. Tensile Test
2. Compression Test
3. Peel Test
4. Bend Test
5. Tear Test
6. Shear Test
7. and customizable test properties



Use Video : Youtube link  -- Tear test

Specification:
Capacity : 200KG (2,5,10,20,50,100,200kg for option)
Effective load range: 0.4%~100%
Load accuracy: ±0.5% of value
Display: Computer Test Software
Units : Kg,lb,N
Data sampling frequency : 200times/sec
Load solution : 1/±250000 of max load
Load sensor : Pull and press sensor(max load)
effective test width : 150mm
Effective stroke: 500mm
Test speed : 50-500mm/min
Displacement accuracy : ±0.5%
Returning function : Manual or automatic two option, after test the up fixture will return to the
initial position
Safety device : electronic process for limit procession
Overload protection : If 10% over than max load,machine will automatic stop for protection
Result print : Outside printer that connect to computer
Grip : tensile fixture 1 set
Machine Size : 420×350×1520mm
Machine weight : Approx 50 Kg
Power : 220V±10% 0.2KW/0.4KW



Standard accessories:
Tensile strength fixtures 1 set,
Computer test software 1 set,
English manual book 1 pcs
Net weight : 50KG, Gross weight: 65KG; Plywood box size: 50*45*160cm
Grips:
Single Arm Computer Servo Tensile Strength Testing Equipment HTP-002 0
Single Arm Computer Servo Tensile Strength Testing Equipment HTP-002 1
