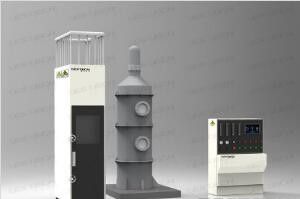

Bunched Cable Vertical Flame Spread Flammability Test Equipment VFT-716 / IEC 60332-3 / KS C IEC 60332

Bunched Cable Vertical Flame Spread Flammability Test Equipment VFT-716 / IEC 60332-3 / KS C IEC 60332
Bunched Cable Vertical Flame Spread Flammability Test Equipment VFT-716 / IEC 60332-3 / KS C IEC 60332 Bunched Cable Vertical Flame Spread Flammability Test Equipment VFT-716 / IEC 60332-3 / KS C IEC 60332

Large Image :  Bunched Cable Vertical Flame Spread Flammability Test Equipment VFT-716 / IEC 60332-3 / KS C IEC 60332

Product Details:
Place of Origin: Guangdong,China(Mainland)
Brand Name: HTI
Certification: VFT-716, IEC 60332-3, KS C IEC 60332
Model Number: HTB-026
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: strong plywood box package
Delivery Time: 20 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5 sets per quarter
Detailed Product Description
Power: Electronic Product Name: Flammability Testing Equipment
Exhaust Hole Of The Top: 300(W) ×1, 000(D)mm Air Source: Propane And Air
External Dimensions Of The Burning Cabinet: 1120(W) ×2195(D) ×5077(H)mm External Dimensions Of The Control Cabinet: 1280(W) ×770(D) ×1200(H)mm
High Light:

flammability test

,

flammability testing equipment



Bunched Cable Vertical Flame Spread Testing Equipment, VFT-716, IEC 60332-3, KS C IEC 60332





Product Application:



Bunched cable vertical flame spread tester is used to detect vertically mounted under specified conditions for vertical flame spread inhibiting the ability of bundle cable or fiber optic cable. In accordance with IEC60332—3—10: 2000<Tests on electric and optical fiber cables under fire conditions - Part 3-10: Test for vertical flame spread of vertically-mounted bunches wires or cables>





Standards:



IEC60332—3—10: 2000, UL1685, EN 50399, GB/T18380.(31—36)—2008





Technical parameters:



1. Internal dimensions of stainless steel test chamber: 1,000(W)×2,000(D) ×4,000(H)mm, supplemented with insulated mineral wool material

2. At the lower section of the test chamber, there is a 800(W) x 400(D) sized hole at the 150mm position from the front side of the chamber to supply the air

3. Exhaust hole of the top: 300(W) ×1, 000(D)mm

4. Wide stainless steel ladder dimensions: 500(W) ×3, 500(H) mm; quantity: 1

5. Standard stainless steel ladder dimensions: 800(W) ×3, 500(H); quantity: 1

6. Two sets of banding standard propane burner devices

7. Two sets of venturi gas mixing devices

8. Pressure gauge and pressure reducing valve device, which is able to adjust propane and air pressure to 0.1 MPa

9. Rotameter: used for adjusting and setting the gas flow

10. There is a steel ladder and handrail on the chamber body, which is convenient for the user to test at the top

11. Equipped with a ball valve, so that air supply can be closed manually

12. Set flame test time automatically, and by then the air supply can be cut off automatically

13. Mounted K thermocouples inside the chamber, indicating the internal temperature

14. With forced fire extinguishing device

15. Automatic lifting device





Specifications:



External dimensions of the burning cabinet: 1120(W) ×2195(D) ×5077(H)mm

External dimensions of the control cabinet: 1280(W) ×770(D) ×1200(H)mm

Power supply: AC 220V, 50/60Hz, 2A

Air source: propane and air( prepared by users)
