Product Details:
Payment & Shipping Terms:
|
| Brand Name: | HTI | Power: | Electronic |
|---|---|---|---|
| Product Name: | Textile Testing Equipment | Model Name: | HTY-006 |
| Dimensions: | 600*350*1100mm(L*W*H) | Speed: | 20~1200mm |
| High Light: | textile testing instrument,textile test equipment,Fiber Fineness And Composition Analysis System |
||

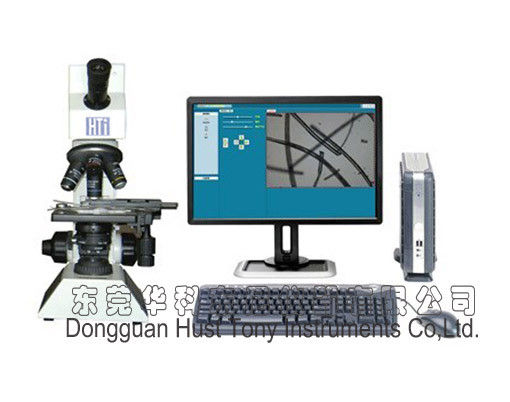

Fiber Fineness And Composition Analysis System Textile Testing Equipment
Description:
The Fiber Fineness & Composition Analysis system Instrument is design by Tony International (HK)
Co., Ltd.Use to the new computer technology. Stand for the current state-of-the-art computer software
automation identification technology, the intelligent fiber fineness measurement, fiber composition
analysis of the fiber image detection equipment.
Analog cameras capture the fiber longitudinal and cross-sectional microscopic images, can quickly realize
the aid of the software intelligent fiber longitudinal the diameter data test, and have the fiber type
annotation, statistical analysis, EXCEL output, electronic statements etc., suitable for the measurement
of fiber fineness and blended fiber blend content of the test. And able to observe the cross-sectional shape
of the hollow fibers and profiled fiber
Features:
1. Test the fiber diameter of wool and rabbit hair and staple fiber.
2. This instrument concludes the computer, vidicon, microscope, printer and exam soft ware.
3. The rest report would give out in the form of Excel; offer the standard reports.
4. It would offer standard sample photo data of animal fibre, chemical fibre.
5. It would offer fibre diameter measuring function automatically.
Specifications:
| Measurement | 1~2000 µm |
| Measurement accuracy | 0.0001 µm |
| Power | AC230V 50Hz 100W |
| Overall dimension | 1200×500×600 |
| Weight | 25kg |
Main configuration:
1. fineness analysis software (V3.0)
2. special microscope (MOTIC B1) : magnification 200-2000 times
3. special panasonic color camera (CP240) : 480 lines
4. lenovo LCD computer
5. Canon color printer
6. glass slides: 1 box
7. cover glass: 1 box
8. standard wool tops: 1 pack
9. fiber slice device: 1 pcs (Hartz)
10. liquid paraffin wax: 1 bottle
11. dropper: 1 PCS
12. blade: 1 PCS
