Product Details:
Payment & Shipping Terms:
|
| Brand Name: | HTI | Power: | Electronic |
|---|---|---|---|
| Product Name: | Textile Testing Equipment | Model Name: | HTF-020 |
| Dimension: | 520×850×1050mm | Net Weight: | 55Kg |
| High Light: | textile testing machine,textile test equipment |
||

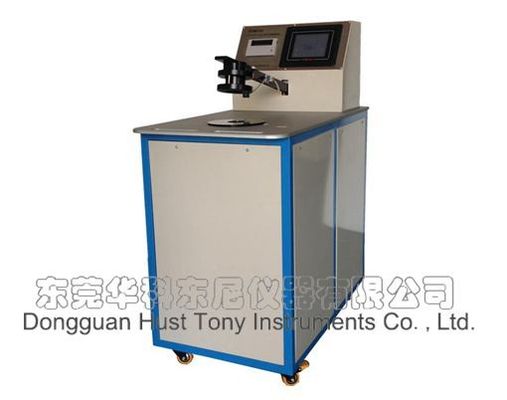

220V 50HZ 800W Fabric Air Permeability Automatic Textile Testing Equipment
Description:
Applicable Range:
Used for testing the air permeability of various textile fabrics, textile manufactures, including industrial fabrics, nonwoven fabrics and other materials permeable to air.
Features:
1. Automatically change the pore plate (8 pcs), fast and convient, no personal error.
2. Intelligent and flexible touch control interface 320*240 size. fully display its dynamic test.
3. Use draught fan with muffler device, no noise during the test.
4. This machine uses high precision pressure sensor;
5. Automatical fasten clamps, seal in good effect;
6. Data reading and printing, units selectable and air permeability auto conversion;
7. Upper/lower clamps and air tube made from aviation aluminium material by surface oxidation procedure;
8. Automatically meaure the air permeability for all kinds of sample;
9. Fast test speed, each test could be finisehd within only 1 minute,.
10. Program could be Chinese or English display.
Specifications:
| Measuring Unit | mm/s, L/m2/s, cm3/cm2/s, dm/min, L/dm2/min, m/min, m/h, cfm |
| Test Accuracy | ±2％ |
| Test Pressure | 0-1000Pa could be preset |
| Air permeability | 0.2～13000mm/s |
| Measuring error | ≤±2％ |
| Fabric thickness | ≤12mm |
| Air regulation | data feedback dynamic regulation |
| Test Area &Test fixture | 20cm2 and 38c㎡(? 70mm) ; 5cm2,25cm2, 50cm2 and 100c㎡ (optional) |
| Out put | inside stylus printer |
| Power Source | 220V±10% , 50Hz, 800W |
| External Dimension | 520×850×1050mm |
| Pore plate(nozzle) | 8 pcs, automatically changeable by machine, no need to change it by hand |
| Net weight | 55Kg |
Standards:
GB/T5453, GB/T13764, ISO9237, ISO7231, ISO5636, BS5636, DIN 53887, ASTM D737, JIS L1096, BS5636
