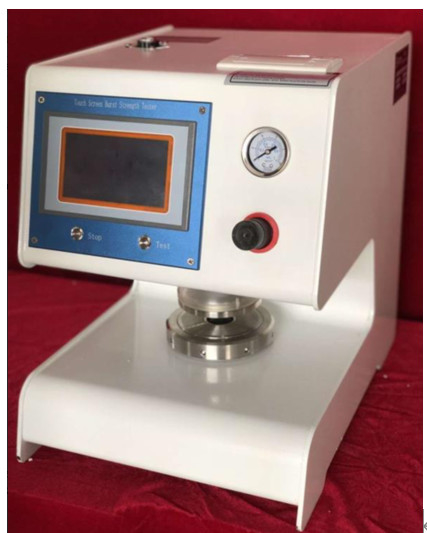

Touch Screen Fully Automatic Carton Bursting Strength Tester HTZ-008

HTZ-008 Fully Automatic Digital Bursting Strength Tester--Touch screen control

Bursting strength tester is ideal for testing a wide range of materials like paper, paperboard, corrugated board and boxes, leather, filter cloth, rexine, etc, to determine their quality, strength and performance.

Features:

1. It is applicable to test bursting strength for variety of paperboard.
2. Advanced micro computer controller and digital processor ensure result precise.
3. Printer facility and fully detailed test reports.
4. Results of the tests are stored for viewing or for printing out as required.
5. Power protection ensure automatic record when power cut off.
6. Specimen clamping apparatus fully automatic grip and open.

Design standard:JIS-L1004,L1018,L1031,K6328,P8131,P8112 ASTM-D2210,TAPPI T403,ISO2759-2001,GB/T1539

Specifications:

Bursting strength range for paperboard: 250~5600kPa
Bursting strength range for paper: 250~1600kPa
Resolution:0. 1 kPa; Accuracy ±0.5%FS
Inflating speed 170±15ml/min
Specimen clamping force more than 690kPa
Clamp material: stainless steel SUS#304
opening in upper/lower clamp 31.5 ± 0.05 mm Diameter
oil 85% Glycerin; 15% Distilled Water
operation Method semi-automatic
power supply 1ø, AC220± 10%, 50 Hz; 120W
Dimension:445×425×525(W*H*D)
Standard Configuration: Rubber Membrane 2-piece, Spanner 1 set, Correction Shim 10 sheets, Glycerin 1 bottle

全自动纸板耐破度仪(以下简称仪器)是纸张强度性能检测的基本仪器,其各项性能参数和技术指标符合ISO2759<纸板—耐破度的测定>,GB1539<纸板耐破度的测定法>和ISO2758<纸—耐破度的测定>和GB454<纸耐破度的测定法>等标准规定,适用于各类纸和纸板的耐破强度试验.
2 主要技术特性
参 数 项 目 技 术 指 标
测量范围 (250～6000)kPa
分辨力 0.01kPa
示 值
准确度 示值误差 ±0.5%FS
示值变动性 ≤0.5%
加压(送油)速度 (175 ±15)ml/min
试样夹环几何尺寸 符合GB1539
胶膜
阻力 凸起高度 10mm 18mm
胶膜阻力值 (170～220)kPa (250～350)kPa
试样夹持力 ＞690kPa(可调节)
测试系统密封性 1min内压降＜10%Pmax
整机质量 约55kg
压力表设定压力 (3.5～6)Kg/cm2
配用空气压缩机 排气量 (0.02～0.3)m3/min
额定压力 (0.6～0.7)MPa
