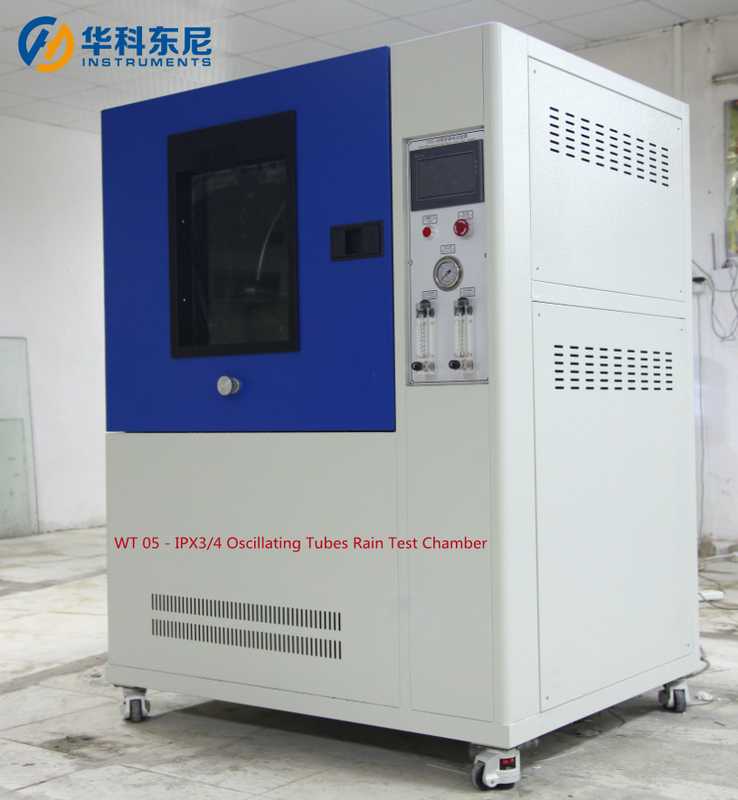

IPX3/4 Oscillating Tubes Rain Test Chamber Waterproof Test Equipment WT-05

Principle: Simulate the damage of natural water (rain, seawater, river water, etc.) to products and materials, and waterproof testing of product casings.For electrical products, outdoor lamps, electrical cabinets, electrical components, automobiles, motorcycles and their components and other products in simulated rainy climate conditions, the physical and other related properties of the product tested .

Standard :
IEC60529:1989 +A1:1999 +A2:2013
GB/T4208-2017 Housing Protection Rating (IP Code) 14.2.1, 14.2.2 and Figure 3
GB7000.1 Lamps Part I: General Requirements and Trials 9.2.3


Features:

1. Suitable for product IPX3, IPX4 waterproof testing

2. The shell is made from domestic high-quality steel plate.

3. The chassis is equipped with a water storage tank, which automatically controls the water intake and prevents damage to the machine due to lack of water.

4. The use of high-quality servo motor, low noise, swing speed, angle more accurate..

5. Sample loading table using stepper motor, rotation speed and standard angle can be controlled by touch screen.

6. Touch control function for IPX3 testing, IPX4 testing, customization: you can set the test time, rain angle, swing speed, turntable speed.

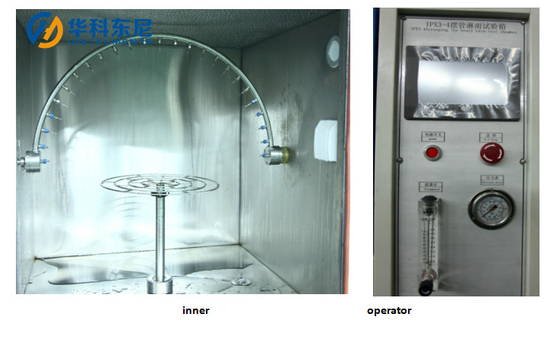

7. sample turntable: US304 stainless steel plate processing and manufacturing.

8. The power-off time of the sample power supply can be controlled by the program: power failure (0-999 min) - power on (0-999min) - power failure (0-999min), suitable for samples in the test need to power off.

9. The door has tempered glass windows and the box is equipped with LED lights for easy observation of internal testing.

10. The test chamber is equipped with a sample power outlet (standard AC220, 10A; can be customized on demand), then sample can be tested live.



Technical parameters :





Terms of use :


Accessories:
1. Filter element: 1pcs;
2. Test needles: 100 pcs;
3. water tube : 5 meter *1 pcs

Types of IPX Rain Spray Test Chamber

• IPX1/2 vertical drop test equipment (with rotating machine and tilt sample samples machine);--Model :WT-01/02/03
• IPX3/4 automatic arranging the pouring water test equipment (with automatic turntable);--Model : WT-04 /05
• IPX5/6 hosing test equipment (D 6.3 mm, D 12.5 mm nozzle);--Model : WT-06/07/08
• IPX7 the water immersion test equipment ;--Model : WT-09
• IPX8 Pressure Immersion Water Test equipment --Model : WT-10
• IPX7 / IPX 8 water and Pressure water immersion test equipment --Model : WT-11
• IPX9 9K High Temperature And High Pressure Water Spray Test Chamber --Model : WT-12
• IEC60529 IP5X IP6X Dust Test equipment (500L / 1000L )--Model : WT-13/14
