IPX3/4 Oscillating Tubes Rain Tester Waterproof Test Equipment WT-04

IPX3/4 Oscillating Tubes Rain Tester Waterproof Test Equipment WT-04
IPX3/4 Oscillating Tubes Rain Tester Waterproof Test Equipment WT-04 IPX3/4 Oscillating Tubes Rain Tester Waterproof Test Equipment WT-04

Large Image :  IPX3/4 Oscillating Tubes Rain Tester Waterproof Test Equipment WT-04

Product Details:
Place of Origin: china
Brand Name: HUST Tony
Model Number: WT-04
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: contact saler
Packaging Details: Plywood BOX
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per month
Detailed Product Description
Model Number: WT-04 Iterm: Tubes Rain Tester
Minimum Order Quantity: 1 Set Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union Place Of Origin: Guangdong,China(Mainland)
Certificate: IEC60529 ,GB/T4208,GB7000
High Light:

IEC60529 Tubes Rain Tester

,

GB/T4208 Tubes Rain Tester

,

GB7000 Tubes Rain Tester

Simulate the damage of natural water (rain, seawater, river water, etc.) to products and materials, vertical rain drip tester is to test the physical and other related properties of the products in the environment of simulated rain, such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and components.


Standard :
IEC60529:1989 +A1:1999 +A2:2013.
GB/T4208-2017 Housing Protection Rating (IP Code) 14.2.1, 14.2.2 and Figure 3.
GB7000.1 Lamps Part I: General Requirements and Trials 9.2.3.



Features:

1. Suitable for product IPX3, IPX4 waterproof testing

2. Double column structure, easy to install, swing pipe rotation smooth.

3. The chassis is equipped with a water storage tank, which automatically controls the water intake and prevents damage to the machine due to lack of water.

4. The use of high-quality servo motor, low noise, swing speed, angle more accurate..

5. Sample loading table using stepper motor, rotation speed and standard angle can be controlled by touch screen.

6. Touch control function for IPX3 testing, IPX4 testing, customization: you can set the test time, rain angle, swing speed, turntable speed.

7. sample turntable: US304 stainless steel plate processing and manufacturing.

8. The power-off time of the sample power supply can be controlled by the program: power failure (0-999 min) - power on (0-999min) - power failure (0-999min), suitable for samples in the test need to power off.

9. Column structure, equipment running smoothly, the main frame can be packaged as a whole, convenient transportation, saving installation time.

10. The test chamber is equipped with a sample power outlet (standard AC220, 10A; can be customized on demand), then sample can be tested live.





Technical parameters :

Apply to the product IPX3, IPX4 test
Tube size R1000 mm
Spray hole size Dia 0.4mm
Tube inner diameter 15 mm
Sample turntable’s diameter Dia 800 mm

Flow IPX3=2.9L/min±5%;IPX4=4.3L/min±5%
Turntable height adjustable range 1300-1700mm
Turntable speed 1-5r/min adjust
The turntable rotates Always turn forward / forward reverse alternately
Turntable loads 50kg
Tube angle 120º (IPX3), 350º (IPX4), or custom settings
Swing speed 4s’ - 240 degrees, 12s’ -720 degrees (precise control) or custom settings

Safety protection Leakage protection, water shortage protection, short-circuit protection
Dimensions 2850*2020*2350 mm
power supply AC220V±10% ;50Hz ,1.0kw, Fire line+zero line+protective ground line(Resistance<4Ω)
Sample load power supply AC220V±10% ;50Hz



Terms of use :



Environmental requirements

Ground is flat, drainage is smooth, the ground and walls are waterproof, setting ground leakage or drainage ditches.

Well ventilated.

No strong electromagnetic field around.

No flammable, non-explosive, non-corrosive substances and dust around .

Temperature 5℃~35℃
Humidity ≤85%
Atmospheric pressure 86kPa~106kPa
Power supply conditions

Install the appropriate capacity of the leakage protection air switch for the device, the switch must be used independently of the device.

Do not use the knife-switch or power outlet.

Distance is no more than 2m from the air switch of creepage and equipment .

Water conditions

The water pressure is not less than 0.2Mpa and a 4-point tap is installed.

The tap is no more than 2 meters away from the device.

Accessories:
1. Filter element: 1pcs;
2. Test needles: 100 pcs;

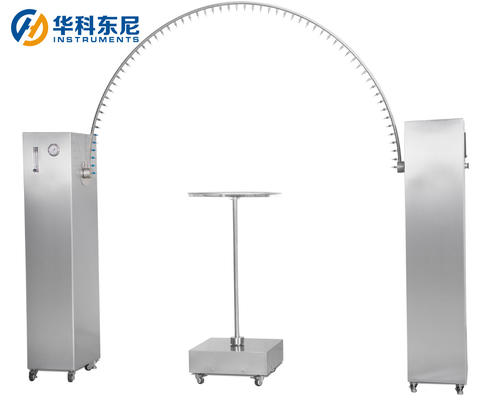

IPX3/4 Oscillating Tubes Rain Tester Waterproof Test Equipment WT-04 0

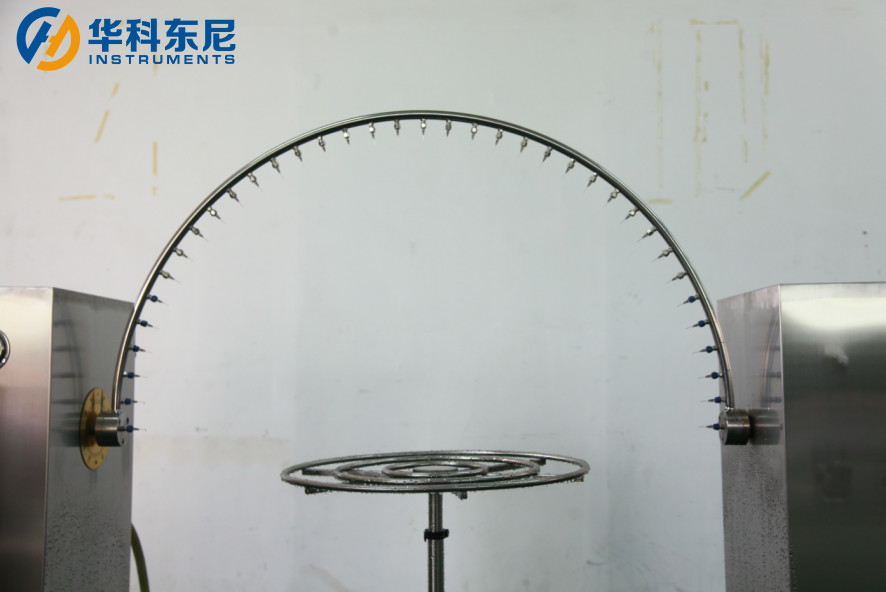

IPX3/4 Oscillating Tubes Rain Tester Waterproof Test Equipment WT-04 1


Types of IPX Rain Spray Test Chamber



  • IPX1/2 vertical drop test equipment (with rotating machine and tilt sample samples machine);--Model :WT-01/02/03
  • IPX3/4 automatic arranging the pouring water test equipment (with automatic turntable);--Model : WT-04 /05
  • IPX5/6 hosing test equipment (D 6.3 mm, D 12.5 mm nozzle);--Model : WT-06/07/08
  • IPX7 the water immersion test equipment ;--Model : WT-09
  • IPX8 Pressure Immersion Water Test equipment --Model : WT-10
  • IPX7 / IPX 8 water and Pressure water immersion test equipment --Model : WT-11
  • IPX9 9K High Temperature And High Pressure Water Spray Test Chamber --Model : WT-12
  • IEC60529 IP5X IP6X Dust Test equipment (500L / 1000L )--Model : WT-13/14
