Product Details:
Payment & Shipping Terms:
|

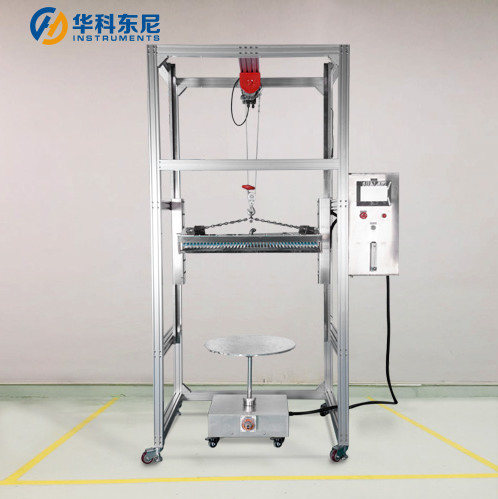

Model Number: | WT-03 | Iterm: | Vertical Rain-Drip Tester |
---|---|---|---|
Minimum Order Quantity: | 1 Set | Delivery Time: | 15 Working Days |
Payment Terms: | T/T, L/C, Western Union | Place Of Origin: | Guangdong,China(Mainland) |
Certificate: | IEC60529 ,GB/T4208,GB7000 | ||
High Light: | IPX2 Rain Drop Test Machine,Vertical Rain Drip Tester GB7000,Removable Vertical Rain Drip Tester |
Simulate the damage of natural water (rain, seawater, river water, etc.) to products and materials, vertical rain drip tester is to test the physical and other related properties of the products in the environment of simulated rain, such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and components.
Standard :
IEC60529:2013,
GB/T4208-2017 Housing Protection Rating (IP Code) 14.2.1, 14.2.2 and Figure 3
GB7000.1 Lamps Part I: General Requirements and Trials 9.2.3
IPX1, IPX2
Features:
1. Touch screen control, independently developed operating interface (based on customer requirements to install multiple languages), can directly choose waterproof level, the device will automatically in accordance with the standard terms of the waterproof rating conditions for testing;
2. Core control components use 7-inch touch screen + Panasonic PLC, and electrical components are made using imported brands such as LS .
3. Sample loading table using stepper motor, rotation speed and standard angle can be controlled by touch screen, IPX1 standard speed: 1r/min; IPX2 angle test can be completed automatically: 2.5min rain in 4 positions.
4. With air drying function, after the completion of the test, the water in the drip tank can be removed clean, to avoid long-term water fouling and block the pinhole.
5. The rainboard automatically rises and falls , it can automatically stops when the nozzle is located at the highest point of the tested object at 200mm.
6. Rainfall: with adjustment valve, can be adjusted manually.
7. The nozzle contact bit brass cone design makes it easy to change the needle without tools, and a stainless steel mesh shield is installed under the needle to prevent the test operator from being injured when the head touches the test needle.

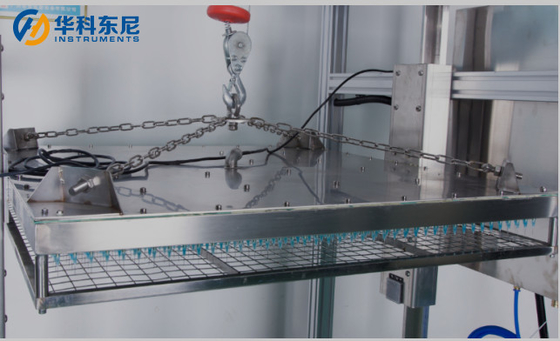

8. Rain-drip plate: the use of vacuum design, the use of high rust-proof stainless steel material manufacturing.
9. Column structure, equipment running smoothly, the main frame can be packaged as a whole, convenient transportation, saving installation time.
10. sample turntable: US304 stainless steel plate processing and manufacturing.
11. The test chamber is equipped with a sample power outlet (standard AC220, 10A; can be customized on demand), then sample can be tested live.
12. The equipment base is equipped with 4 moving casters for easy movement and fixation
Technical parameters :
Apply to the product | IPX1, IPX2 test |
Raindrop area | 1000*1000mm |
Diameter of the drip hole | ¢0.4mm |
Diameter of the turntable | ¢600 mm |
Height of the turntable | 600mm |
Rainfall | 1-3 mm/min(±0.5mm/min) |
Water volume regulation | Manual control |
Raindrop board lift range | 800-1800mm adjustable |
Turntable lift range |
Non-adjustable, fixed |
Turntable loads | 50kg |
Angle of the turntable | 0°OR 15°(Horizontal direction) |
Turntable speed | 1 r/min(IPX1) |
Test time | 0-999 min |
Safety protection | Leakage protection, water shortage protection, short-circuit protection |
Dimensions | 1500*1200*2360 mm |
power supply | AC220V±10% ;50Hz ,1.0kw, Fire line+zero line+protective ground line(Resistance<4Ω) |
Sample load power supply | AC220V±10% ;50Hz |
Terms of use :
Environmental requirements |
l Ground is flat, drainage is smooth, the ground and walls are waterproof, setting ground leakage or drainage ditches. l Well ventilated. l No strong electromagnetic field around. l No flammable, non-explosive, non-corrosive substances and dust around . l Rack and control box Distance: 800-1000mm. |
Temperature | 5℃~35℃ |
Humidity | ≤85% |
Atmospheric pressure | 86kPa~106kPa |
Power supply conditions |
l Install the appropriate capacity of the leakage protection air switch for the device, the switch must be used independently of the device. l Do not use the knife-switch or power outlet. l Distance is no more than 2m from the air switch of creepage and equipment . |
Water conditions |
l The water pressure is not less than 0.2Mpa and a 4-point tap is installed. l The tap is no more than 2 meters away from the device. |
Accessories:
1. Filter element: 1pcs;
2. Test needles: 100 pcs;
3. Brass drip pin holder: 20 pcs
