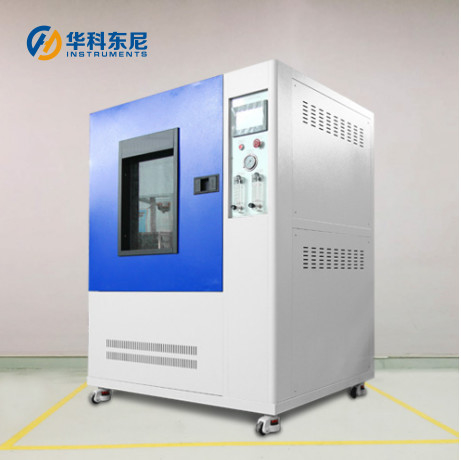

IPX1 IPX2 Vertical Rain Drip Testing Chamber WT02

IPX1 IPX2 Vertical Rain Drip Testing Chamber WT02
IPX1 IPX2 Vertical Rain Drip Testing Chamber WT02 IPX1 IPX2 Vertical Rain Drip Testing Chamber WT02 IPX1 IPX2 Vertical Rain Drip Testing Chamber WT02 IPX1 IPX2 Vertical Rain Drip Testing Chamber WT02

Large Image :  IPX1 IPX2 Vertical Rain Drip Testing Chamber WT02

Product Details:
Place of Origin: china
Brand Name: HUST Tony
Model Number: WT-02
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: contact saler
Packaging Details: Plywood BOX
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per month
Detailed Product Description
Model Number: WT-02 Iterm: Vertical Rain-Drip Tester - Test Chamber
Minimum Order Quantity: 1 Set Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union Place Of Origin: Guangdong,China(Mainland)
Certificate: IEC60529 ,GB/T4208,GB7000
High Light:

GB/T4208 Vertical Drop Rain Tester

,

IPX2 Vertical Rain Drip Tester

,

IEC60529 IPX1 Water Drip Tester

Simulate the damage of natural water (rain, seawater, river water, etc.) to products and materials, and waterproof testing of product casings.

Application: For electrical products, outdoor lamps, electrical cabinets, electrical components, automobiles, motorcycles and their components and other products in simulated rainy climate conditions, the physical and other related properties of the product tested. After testing, the performance of the product is determined to meet the requirements, in order to facilitate product design, improvement, verification and factory inspection use.

Standard :
IEC60529:2013,
GB/T4208-2017 Housing Protection Rating (IP Code) 14.2.1, 14.2.2 and Figure 3
GB7000.1 Lamps Part I: General Requirements and Trials 9.2.3
IPX1, IPX2

Features:

1. Touch screen control, independently developed operating interface (based on customer requirements to install multiple languages), can directly choose waterproof level, the device will automatically in accordance with the standard terms of the waterproof rating conditions for testing;

2. Core control components use 7-inch touch screen + Panasonic PLC, and electrical components are made using imported brands such as LS .

3. Sample loading table using stepper motor, rotation speed and standard angle can be controlled by touch screen, IPX1 standard speed: 1r/min; IPX2 angle test can be completed automatically: 2.5min rain in 4 positions.

4. With air drying function, after the completion of the test, the water in the drip tank can be removed clean, to avoid long-term water fouling and block the pinhole.(Note: Customers need to install air sources)

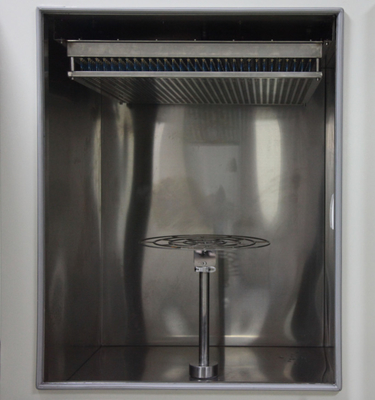

5. Rain-drip plate: the use of vacuum design, the use of high rust-proof stainless steel material manufacturing.

6. Equipment shelf : manufactured from high-quality aluminum profiles.

7. sample turntable: US304 stainless steel plate processing and manufacturing.

8. The equipment has a built-in circulating water tank, recycled water, and the water tank structure is designed to be easy to clean. The water level of the water tank is automatically controlled and there is a high and low water level alarm detection.

9. The test chamber is equipped with a sample power outlet (standard AC220, 10A; can be customized on demand), then sample can be tested live.

10. The equipment base is equipped with 4 moving casters for easy movement and fixation, and With storage box, can put some tools in.



Technical parameters :

Apply to the product IPX1, IPX2 test
Raindrop area 600*600 mm
Diameter of the drip hole ¢0.4mm
Diameter of the turntable ¢600 mm
Inner box size 800*800*1000 mm

Rainfall IPX1=1mm/min(+0.5mm/min);
IPX2=3mm/min(+0.5mm/min)
Water volume regulation Manual control
Raindrop board lift range Non-lifting (fixed, sample platform lifting)
Turntable lift range 400-700 mm
Turntable loads 50kg

Angle of the turntable 0°OR 15°(Horizontal direction)
Turntable speed 1 r/min(IPX1)
Test time 0-999 min
Safety protection Leakage protection, water shortage protection, short-circuit protection
Dimensions

1230*1340*2430 mm

power supply AC220V±10% ;50Hz ,1.0kw, Fire line+zero line+protective ground line(Resistance<4Ω)
Sample load power supply AC220V±10% ;50Hz


Terms of use :

Environmental requirements

l Ground is flat, drainage is smooth, the ground and walls are waterproof, setting ground leakage or drainage ditches.

l Well ventilated.

l No strong electromagnetic field around.

l No flammable, non-explosive, non-corrosive substances and dust around .

l Rack and control box Distance: 800-1000mm.

Temperature 5℃~35℃
Humidity ≤85%
Atmospheric pressure 86kPa~106kPa
Power supply conditions

l Install the appropriate capacity of the leakage protection air switch for the device, the switch must be used independently of the device.

l Do not use the knife-switch or power outlet.

l Distance is no more than 2m from the air switch of creepage and equipment .

Water conditions

l The water pressure is not less than 0.2Mpa and a 4-point tap is installed.

l The tap is no more than 2 meters away from the device.

Gas conditions l Customers are required to bring their own air compressor or gas source, we recommended gas source pressure: 0.6-0.8Mpa





Accessories:
1. Filter element: 1pcs;
2. Test needles: 100 pcs;
3. Brass drip pin holder: 20 pcs



Download files :

IPX1 IPX2 Vertical Rain Drip Testing Chamber WT02 0



IPX1 IPX2 Vertical Rain Drip Testing Chamber WT02 1


Types of IPX Rain Spray Test Chamber



  • IPX1/2 vertical drop test equipment (with rotating machine and tilt sample samples machine);--Model :WT-01/02/03
  • IPX3/4 automatic arranging the pouring water test equipment (with automatic turntable);--Model : WT-04 /05
  • IPX5/6 hosing test equipment (D 6.3 mm, D 12.5 mm nozzle);--Model : WT-06/07/08
  • IPX7 the water immersion test equipment ;--Model : WT-09
  • IPX8 Pressure Immersion Water Test equipment --Model : WT-10
  • IPX7 / IPX 8 water and Pressure water immersion test equipment --Model : WT-11
  • IPX9 9K High Temperature And High Pressure Water Spray Test Chamber --Model : WT-12
  • IEC60529 IP5X IP6X Dust Test equipment (500L / 1000L )--Model : WT-13/14
