Sharp Edge Tester With Force Display - Easy to Use

Sharp Edge Tester With Force Display - Easy to Use
Sharp Edge Tester With Force Display - Easy to Use Sharp Edge Tester With Force Display - Easy to Use

Large Image :  Sharp Edge Tester With Force Display - Easy to Use

Product Details:
Place of Origin: china
Brand Name: HUST Tony
Model Number: TW-220
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: Wooden box
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per month
Detailed Product Description
Model Number: TW-220 Iterm: EN71-1 Sharp Edge Test Equipment
Minimum Order Quantity: 1 Set Delivery Time: 7 Working Days
Payment Terms: T/T, L/C, Western Union Place Of Origin: Guangdong,China(Mainland)
Certificate: CE Standard: ISO 8124-1, EN71-1 2011,ASTM F963
High Light:

EN71-1 Sharp Edge Tester

,

ISO 8124-1 Sharp Edge Test Equipment

,

ASTM F963 Edge Sharpness Tester

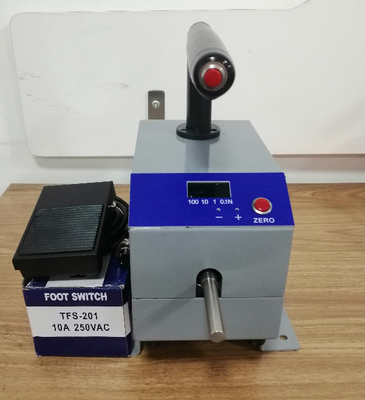

Sharp Edge Tester, a device to conduct the products sharp edges test, can determine whether accessible edges on toys or other products are likely to cause injury. A pressure-sensitive self-adhesive PTFE tape(to simulate human skin) is attached to a mandrel, which is then rotated for a single 360-degree revolution along the accessible edge being tested. If the tape is cut in half or longer in length (approx. 13 mm), the edge is identified as a hazardous sharp edge, on the other hand, the edge passes the test.
Toys intended for use by children under 8 years old are subject to this requirement before or after use & abuse testing.

Products have potential sharp points need determination, a sharp point tester will get the test done.





Technical specifications
Power supply: 220AC/50Hz
Dimensions: 260*120*180mm(L*W*H)
Weight: 6 kg



Bite Test Standard Accessoories:
charging unit 1 pcs
foot switch 1 pcs
base plate 1 pcs
Standard import sharp edge tape1 roll PTFE
Operatoin Manual 1 sheet



Feature:
made of steel

1. The test strength value fixed in 35 pounds all long, and avoid the errors caused by different angle observation.
2. Powerful value external adjustment function
3. It can calibrate and adjust test force value at any time
4. Test shaft in its 75% turn routine, the tangent speed is 1.00±0.08 inches per second.
5. Test tape is pressure-sensitive PTFE (TFE) high temperature electrical insulation tape



Standards:

16 CFR 1500.49, ASTM F963 4.8, EN71-1 2014 8.11, GB 6675-2003 A.5.9
