Model Number: | HTE-006 | Iterm: | Loading Device Ball Pressure Tester |
---|---|---|---|
Minimum Order Quantity: | 1 Set | Delivery Time: | 7 Working Days |
Payment Terms: | T/T, L/C, Western Union | Place Of Origin: | Guangdong,China(Mainland) |
Certificate: | CE | Standard: | IEC60695-10-2, IEC 60884-1figure 37, IEC60320-1, IEC60335-1, IEC60598-1, IEC60950-1. |
High Light: | IEC60695-10-2 Ball Pressure Tester,IEC60320-1 Ball Pressure Tester,Ball Pressure Testing Equipment |
Ball Pressure Tester Meet IEC60695-10-2 Loading Device HTE-006
It is used for testing the heat resistance of the electrical enclosure and external parts which are made up with the insulating materials. It is applicable to electrotechnical equipment and its subassemblies and components. It is also used for solid electrical insulating materials except ceramics.

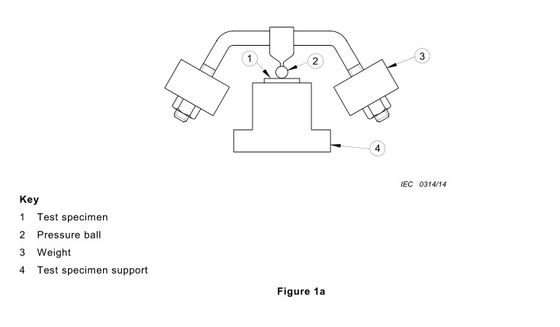

In this test, a conditioned specimen is placed on a preheated support and subjected to a force of 20N applied through a 5mm steel ball. The test stand, specimen and loading device are then kept in an oven at an elevated temperature for an hour. After the hour, the loading device is removed from the sample, the sample is cooled and any indentation is measured. It is important to assure that the test stand has reached a stable elevated temperature as required by the test.

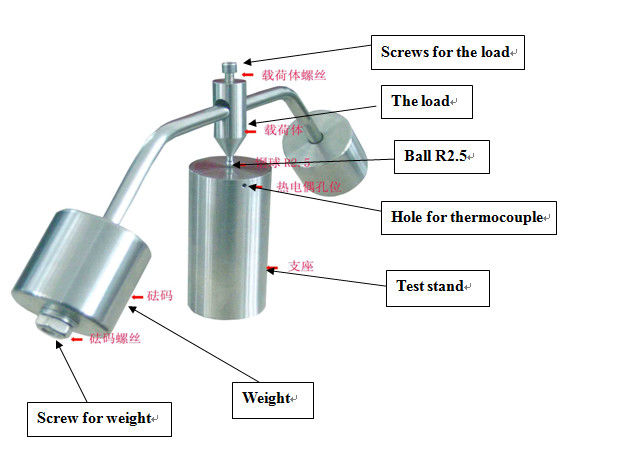

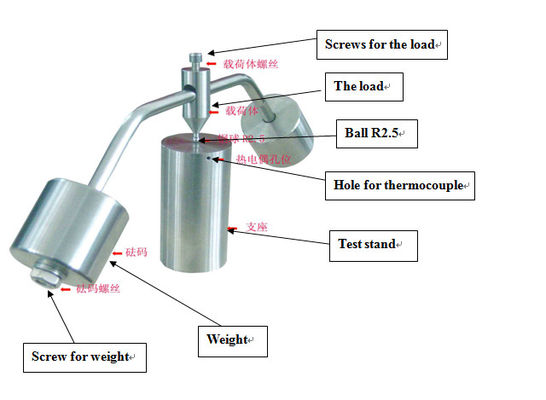

Construction
• ball holder with bore and clamping screw for the bow
• Precision 5mm pressure ball
• Thermocouple for the test stand
• Nickel plated steel materials for good thermal stability
Technical parameters:
Ball Diameter: Ø5mm ±0.05mm
Ball Pressure: 20N±0.2N (includes loading device and ball)
Test Stand: 100mm high x 50mm diameter, hole diameter:1.2mm
Material: Stainless steel, Ball: hardened steel
Conforms to standard: IEC60695-10-2, IEC 60884-1figure 37, IEC60320-1, IEC60335-1, IEC60598-1, IEC60950-1.
Service and Support
Our company focuses on research and development , we were produced some intelligent testing equipments over thirteen years, we continue to provide stable performance, high-quality equipment for product quality testing industry.At present, the company has 14 utility model patent technologies,2 patents for invention and participated in the drafting and formulation of nine national standards.
In cooperation we has a variety of testing units, industries, association partners and friends, accumulated a large number of detection industry insights and contacts, for those friends who just come into testing industry, we can learn from each other to communicate, explore the problems and difficulties encountered in testing.
