Product Details:
Payment & Shipping Terms:
|
Model Number: | TNJ-002 | Iterm: | Physical Testing Of The Stability Of Furniture Table'S Structures |
---|---|---|---|
Minimum Order Quantity: | 1 Set | Delivery Time: | 7 Working Days |
Payment Terms: | T/T, L/C, Western Union | Place Of Origin: | Guangdong,China(Mainland) |
Certificate: | CE | Standard: | BS EN12521; BS EN 1730: 2012; BS EN1728:2012 |
High Light: | BS NE 1730 Furniture Stability Physical Tester,Table Stability Physical Testing Machine,BS NE 1730 Furniture Testing Machines |
Technical parameters:

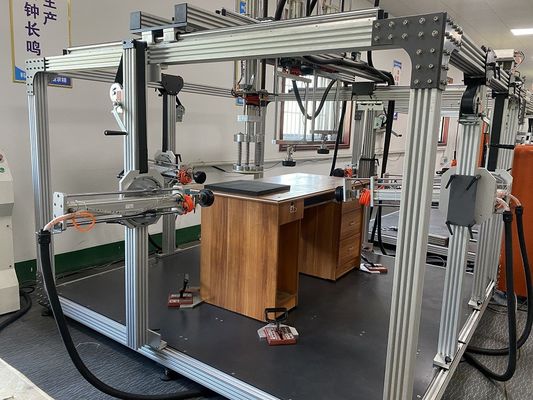

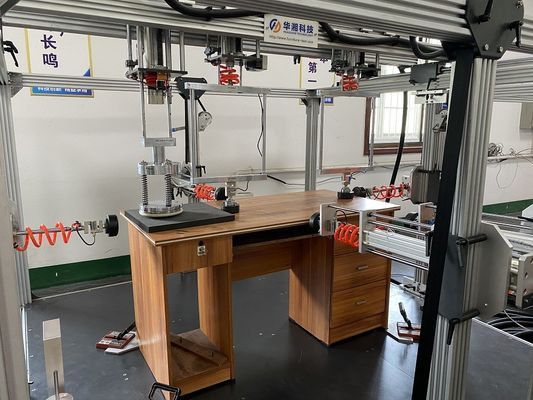

Specification of frame:3m x 3 mx2.3m,(L×W×H), it is made of 80x80mm aluminum
Loading cylinders: Five horizontal and Five Vertical, diameter:50mm,route:300mm,
Loading force value(Max) on the theory: 1500Nþ Force value induction:high-precision power sensor Max Capacity:3KNþ (3000N)
Control way: PLC control
Air source: Air supply input is 0.4Mpa-0.8Mpa. (6kgf/cm^2 or above, supplied by customer themselves)
Applied standards: BS EN12521; BS EN 1730: 2012; BS EN1728:2012
This unit is a combined test rig designed and manufactured according to below test items:
Customers can customize the items they need to test
Test items for tables:
BS EN12521 Furniture-Strength,durability and safety-Requirements for domestic tables-6. Stability,strength and durability test
BS EN 1730: 2012 Domestic Furniture - Tables Test Methods for Determination of Strength, Durability and Stability
6.2 | Horizontal Static Load Test | Quality Acceptance |
6.3 | Vertical Static Load | Need eye inspect and manual record if failed |
- 6.3.1 | Vertical Static Load on Main Surface | Need eye inspect and manual record if failed |
- 6.3.2 | Additional Vertical Load Where Main Surface has a length > 1600mm | Need eye inspect and manual record if failed |
6.4 | Horizontal Durability and Stiffness Test | Need eye inspect and manual record if failed |
- 6.4.2 | Horizontal Durability Test | Need eye inspect and manual record if failed |
6.5 | Vertical Durability Test | Need eye inspect and manual record if failed |
6.6 | Vertical Impact Test--vertical impactor (5.1) | Need eye inspect and manual record if failed |
- 6.6.3 | Vertical Impact Test for All other Table Tops | Need eye inspect and manual record if failed |
7 | Stability | Need eye inspect and manual record if failed |
7.1 | General | Need eye inspect and manual record if failed |
7.2 | Stability Under Vertical Load | Need eye inspect and manual record if failed |
- 7.2.2 | Tests for Tables that are or can be set to a height ≦ 950mm | Need eye inspect and manual record if failed |
- 7.2.3 | Tests for Tables that are or can be set to a height ﹥950mm | Need eye inspect and manual record if failed |
Test Items for chairs:
EN1728:2012 6.17 | Combined seat and back durability test | Has test report for force,time,cycles |
-EN1728:2012 6.20 | Arm rest durability test | Has test report for force,time,cycles |
EN1728:2012 6.21 | Foot rest durability test | Has test report for force,time,cycles |
Contact Person: linmei
Tel: 86-13421721188
