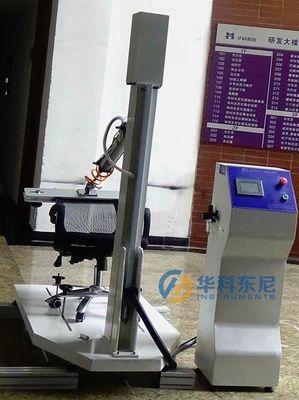

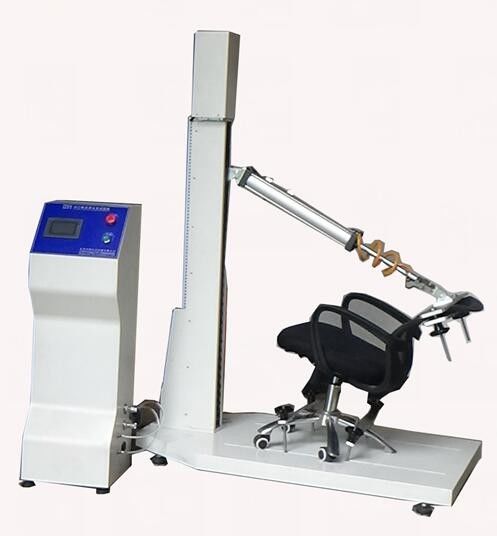

ANSI / BIFMA X5.1-2017 Chair Backrest Horizontal Tester

ANSI / BIFMA X5.1-2017 Chair Backrest Horizontal Tester
ANSI / BIFMA X5.1-2017 Chair Backrest Horizontal Tester ANSI / BIFMA X5.1-2017 Chair Backrest Horizontal Tester ANSI / BIFMA X5.1-2017 Chair Backrest Horizontal Tester ANSI / BIFMA X5.1-2017 Chair Backrest Horizontal Tester

Large Image :  ANSI / BIFMA X5.1-2017 Chair Backrest Horizontal Tester

Product Details:
Place of Origin: china
Brand Name: HUST Tony
Model Number: TNJ-006
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: contact saler
Packaging Details: Plywood BOX
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per month
Detailed Product Description
Model Number: TNJ-006 Iterm: Chair Backrest Horizontal Tester
Minimum Order Quantity: 1 Set Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union Place Of Origin: Guangdong,China(Mainland)
Certificate: CE Standard: ANSI/BIFMA X5.1-2017
High Light:

Chair Backrest Horizontal Tester

,

ANSI/BIFMA X5.1-2017 Chair Backrest Tester

,

Chair Backrest Horizontal Testing Equipment

1) Purpose of equipment
Machine tester for strength and durability backrest chair based on BIFMA (horizontal strength test &
horizontal durability test)
2)Technical specifications
This machine need to fulfill minimum as follow for apply load was decided on backrest following
cycle or time decided:
a) One pneumatic cylinder with load cell capacity 2000N

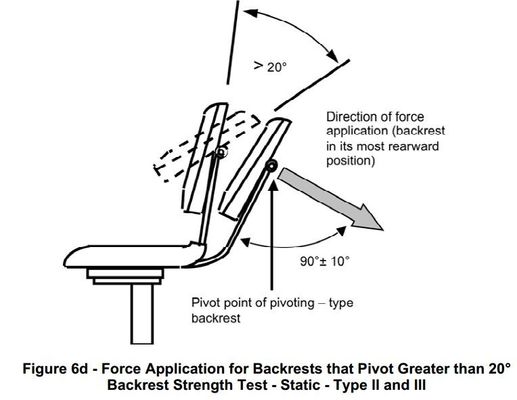

b) Adjustable load direction (90˚
to the chair backrest)

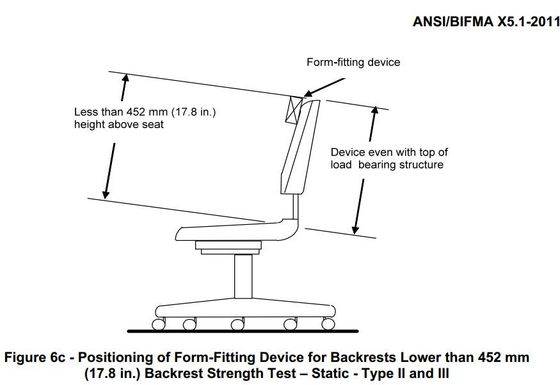

c) Form- fitting load distribution device which distributes a force over a 305±13mm x 70 ± 32mm (12
±0.5” 2.75”± 1.25”) area of the chair backrest
d)Two operation mode:
-Electronic predetermined counter (EPC) – 6 digit counter to stroke the cylinder up to 120,000 cycles
-Timer – to apply and release the force after One (1) minute. Compress air: ±6kg/m²
e) PLC programming code supplied
f) Single phase AC220V
g) Speed: adjustable (10-30 cycle/minute)

Standards:
ANSI / BIFMA X5.1-2017 Chair Backrest Horizontal Tester 0
