IEC60695 - 2 - 10 Glow Wire Flammability Testing Instrument For Materials

IEC60695 - 2 - 10 Glow Wire Flammability Testing Instrument For Materials
IEC60695 - 2 - 10 Glow Wire Flammability Testing Instrument For Materials IEC60695 - 2 - 10 Glow Wire Flammability Testing Instrument For Materials IEC60695 - 2 - 10 Glow Wire Flammability Testing Instrument For Materials

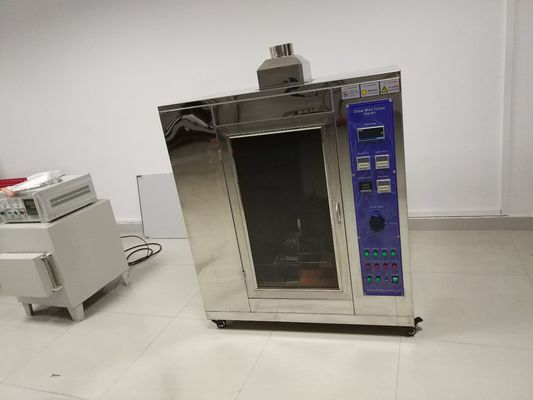

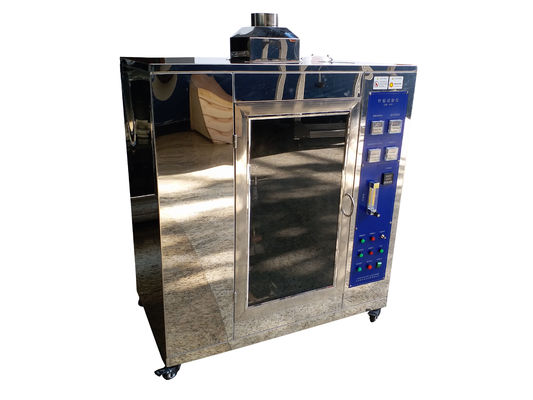

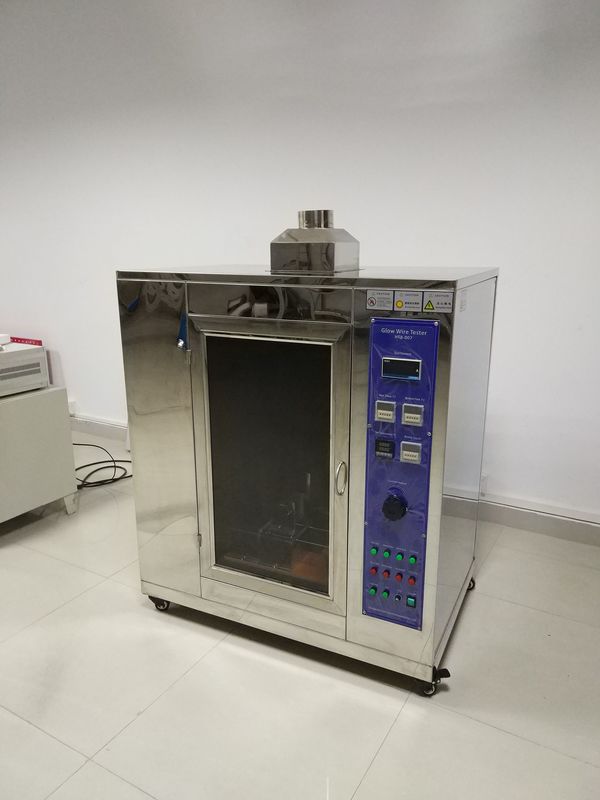

Large Image :  IEC60695 - 2 - 10 Glow Wire Flammability Testing Instrument For Materials

Product Details:
Place of Origin: china
Brand Name: HUST Tony
Model Number: HTB-007
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: contact saler
Packaging Details: Plywood BOX
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per month
Detailed Product Description
Model Number: HTB-007 Iterm: Glow-Wire Flammability Testing Instrument
Minimum Order Quantity: 1 Set Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union Standard: ISO8124 , EN71 , ASTM F963
High Light:

Glow Wire Flammability Testing Instrument

,

EC60695-2-10 Flammability Testing Instrument

,

IEC60745 Glow Wire Test Apparatus

Glow Wire Testing Chamber comply with IEC60695-2-10 -13:IEC 60335-1,IEC 60598-1 and IEC60745





Features:

1.0 They system comply with standards of IEC60695-2-10 :2013 ~ IEC60695-2-13 :2013,IEC 60335-1,IEC 60598-1 and IEC60745.

2.0 Glow wire material: Ni/Cr wire with 4 mm diameter

3.0 Temperature range: 50 ℃ ~ 960 ℃

4.0 Current range: 0-200 Ampere

5.0 Input power: 220V/50Hz

6.0 Including thermocouple and 1℃ resolution display to monitor the wire temperature

7.0 The travel unit and the glow wire is enclosed by a steel chamber

8.0 The chamber shall include a level and adjustable feet



Technical Parameter performance

Glow wire 4mm ± 0.04mm Ni/Cr(80/120) special standard annular horizontal type
Thermocouple 0.5mm K-type,heatproof of 1100 ℃ ( better than standard 1050 ℃ )
Heating temperature 50 ℃ ~ 960 ℃ ( could be preset ) ,temp fluctuation < 3 ℃
Pressure 1.0N±0.1N( adjustable )( better than standard 1.0N±0.2N)
Max depth 7mm ± 0.5mm ( adjustable )
Sample moving speed 10mm /s ~ 25mm /s
Test time 30s±0.1s(1s ~ 999.9s digital readout,preset )
Ignition plate thickness 10mm thick white pine plate with size of 12g /m 2 ~ 30g /m 2 , standard silk paper, 200mm ± 5mm under the glow wire
Test room ≥ 0.5m³,black back, background illumination ≤ 20Lx ;
Size L 1120mm × W 520mm × H 1250mm ,Gas vent 100mm
Power 1kVA 220V 50-





Comply with Standards:

IEC60695-2-10 /11 /12 /13:IEC 60335-1,IEC 60598-1 and IEC60745















Service and Support
      Our company focuses on research and development , we were produced some intelligent testing equipments over thirteen years, we continue to provide stable performance, high-quality equipment for product quality testing industry.At present, the company has 14 utility model patent technologies,2 patents for invention and participated in the drafting and formulation of nine national standards.
      In cooperation we has a variety of testing units, industries, association partners and friends, accumulated a large number of detection industry insights and contacts, for those friends who just come into testing industry, we can learn from each other to communicate, explore the problems and difficulties encountered in testing.
