Product Details:
Payment & Shipping Terms:
|
Model Number: | HTB-002 | Iterm: | Flame Spread Vertical Flammability Tester |
---|---|---|---|
Minimum Order Quantity: | 1 Set | Delivery Time: | 15 Working Days |
Payment Terms: | T/T, L/C, Western Union | Place Of Origin: | 16 CFR 1615, 1616, ASTM6413, CALIF TB-117(TECHNICAL BULLETIN 117) SECTION A-Part I Resilient Cellular Materials |
High Light: | Flame Spread Vertical Flammability Tester,ASTM6413 Vertical Flammability Tester,ASTM6413 Vertical Flammability Chamber |
Vertical Flammability Testing Equipment For Vertical Flame
Standard : 16 CFR 1615, 1616, ASTM6413, CALIF TB-117(TECHNICAL BULLETIN 117) SECTION A-Part I Resilient Cellular Materials
Description:

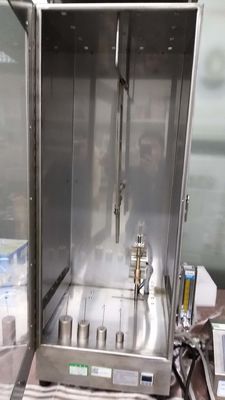

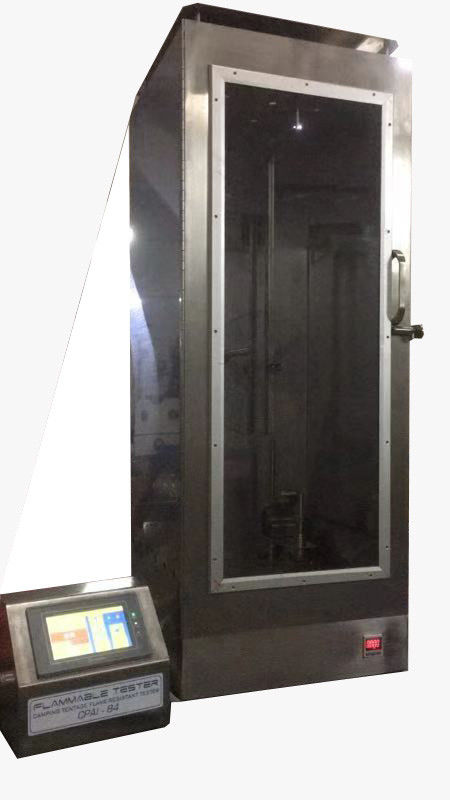

Vertical Flammability Chamber for measuring the vertical flame spread of children’s sleepwear, fabrics (fabric burn test), other textile materials or resilient filling materials used in upholstered furniture. Vertical flame test Chamber complies with ASTM D6413, CALIF TB117, 16CFR Parts1615/1616, etc. Each flammability test method refers to specific testing requirement.
Features:
1. Bunsen burner postion controlled by hand,auto-timing and postioning,easy operation,
2. Equipped with hypersensitivity warning device for gas leakage,automatic alarm for gas leakage,
3. Horizontal and vertical two bunsen burners fixed,
4. It needs fume hood or special exhaust system for the burnt gas,

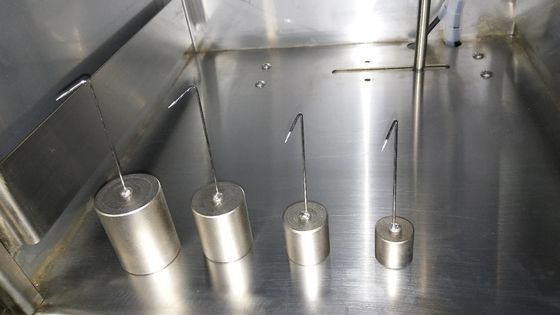

5. Two sets of specimen holders for horizontal and vertical burning.
6. Change-over switch for horizontal and vertical flammablity testing, easy operation.
Specifications:
Burner diameter | 11.0mm or 9.5mm |
Burning time | 12s or others |
Burner angle | 25 degree/90 degree |
Dimension | 330*340*960mm (L*W*H) |
Weight | 45kg |
Flame altitude | 1.5 inch |
Burning gases | butane |
Power | AC220V/50Hz, 2A |
Net weight | 45KG, Gross weight: 58KG |
Plywood box size | 74*46*106cm |
Service and Support
Our company focuses on research and development , we were produced some intelligent testing equipments over thirteen years, we continue to provide stable performance, high-quality equipment for product quality testing industry.At present, the company has 14 utility model patent technologies,2 patents for invention and participated in the drafting and formulation of nine national standards.
In cooperation we has a variety of testing units, industries, association partners and friends, accumulated a large number of detection industry insights and contacts, for those friends who just come into testing industry, we can learn from each other to communicate, explore the problems and difficulties encountered in testing.
Contact Person: linmei
Tel: 86-13421721188
