Product Details:
Payment & Shipping Terms:
|
Model Number: | HTC -002C | Iterm: | Electric Auto Color Factness Friction Test Machine For Textile |
---|---|---|---|
Minimum Order Quantity: | 1 Set | Delivery Time: | 15 Working Days |
Payment Terms: | T/T, L/C, Western Union | Place Of Origin: | Guangdong,China(Mainland) |
Certificate: | CE | Standard: | ISO105-X12,D02,AATCC8/165,JIS L0849 |
High Light: | Color Factness Friction Test Machine,Auto Textile Friction Test Machine,AATCC8/165 Friction Test Machine |

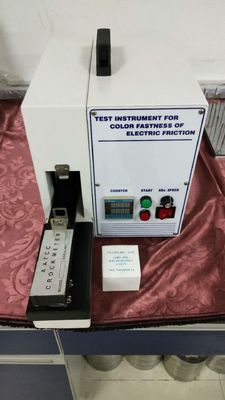

Textile Colour Fastness Friction Testing Machine With ISO105X12/D02 ,AATCC 8/165,BS1006 D02
Detailed Description:
machine is suitable to test fabric dyes and staining degree after rubbing other materials can be measured fabric dry / wet rubbing fastness.
This equipment mainly consists of control system and system of friction, the sample with the sample holder on the base with one end of the paste with sand paper, friction will be wrapped in white cloth placed on the sample, the friction after the specified number, observe the specimen card compared with ashes on the evaluation of white cotton stick color degree, the stability of the dyed or surface coating on the sample of the fabric to judge, and provide reference data for evaluation and selection of materials.This apparatus is suitable for yarn, color weaving, printing and dyeing, as well as all the fabrics on or inside the toy products.
Technical Parameter:
Friction head diameter: 16mm + / - 0.1
Friction stroke: 104/100mm (adjustable)
Vertical pressure: 9N plus or minus 10% (AATCC standard)
Running speed of friction head: 104 + / - 3mm/min (AATCC standard)
Test the number of reciprocating movements: 10 times
Friction speed: 60 + / - 1rpm/min
Weight: 15kg
Instrument size :600mm (24 inches) * 230mm (9 inches) * 260mm (11 inches)
Power connection: 220V, 50Hz
Standard friction small white cloth: 50 * 50mm, desizing, bleaching, cotton fabric without fluorescent whitening agent and finishing agent.
Standard stained grey card (optional purchase item)
Standard light source to color light box.(optional purchase item)
Friction head size | Round 16mm |
Head vertical pressure | 9N |
Stroke | 100 mm |
Friction speed | 60 times / min |
Sample size | 200mm × 50mm |
Accessories | standard clamp ring / Standard sandpaper |
Option | import standards friction cloth (1000 / box) |
Standard :
ISO105-X12,D02,AATCC8/165,JIS L0849
