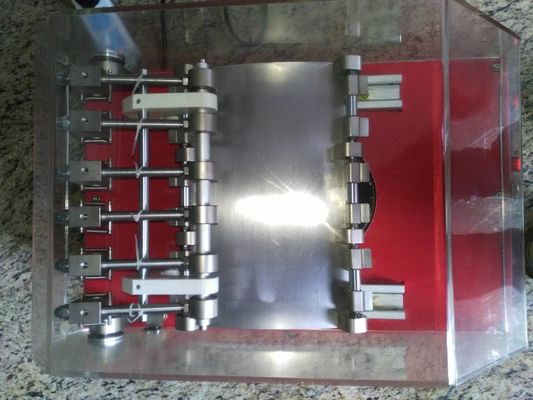

JIS L 0849 II Textile Testing Equipment Color Fastness To Rubbing Friction Testing Machine

This JIS Colorfastness/Rubbing Tester machine is based on the friction test machine type II in the prescribed form of Japanese Industrial Standard JIS L0849, primarily used in dyeing color fastness to rubbing test.

Principle:

Use the friction test machine according to prescribed methods, make the sample and tested cotton lawn rubbing fabric to rub each other. Compare the stained cotton fabric and the grey scales of staining degree to judge the color fastness.

JIS Colorfastness/Rubbing Tester Specifications:

Test station: 6

Test stroke: 120mm

Test Speed: 30±2r/min

Rubbing head pressure: 2N (200g)

Extra weight:300g

Rubbing locus distance : 100±1mm

Rubbing surface:R200 Curved Surface

Rubbing head: R45mm surface,approx 20mmX20mm contact area of 100mm2

The distance from the fixed axis center to rubbing finger center:110mm

Cotton cloth size:60mmx60mm

Counting display:LED display,0~99999

Power: 1∮ AC 220V 3A, 200W

Dimensions:330×550×350mm(L×W×H)
Weight: 45kg

Accessories: weights 6pcs, power line 1pcs

Standards: JIS L 0849 II, 0801,0823,,1006,1084,K6328,98136,JIS P-8136

Optional purchase consumables: SDC Cotton Lawn Rubbing Fabric, Grey Scales
