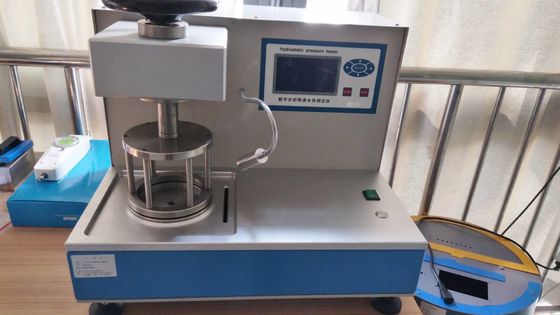

AATCC 127 Fabric Hydrostatic Head Tester With Touch Screen

Fully Automatic Digital Fabric Hydrostatic Pressure Textile Testing Equipment

Hydrostatic pressure tester, it is used to measure the water penetration resistance of fabrics under hydrostatic pressure. Hydrostatic test can include in those kinds of fabrics, such as canvas, coated fabrics, cover cloth, rainproof clothing fabrics, and geotextile materials, and films to water penetration under pressure while firmly clamped in the test rig of standard area.

Standards: DIN 53886 JIS L1092 GB/T 4744,ISO811,FZ/T 01005,AATCC 127

Testing mode:

1.Turbocharged method;

2.High pressure supercharge method;

3.High pressure constant method;

4.flexing resistance relaxation method;

5.leakage water method

Technical Parameters:

Measuring range: 500pa-200kpa(5-2000cmH2O)

Resolution: 1 pa

Accuracy: 0.2%FS

Pressure speed: 50--900mm/min (500pa-9kpa;5mbar-90mbar)stepless adjustable

Accuracy error: ≤1 mm

Specimen holder Pneumatic Grip Dimension: 100cm2

External dimension: 600×400×780mm(L×W×H)

Weight:50 kg

Power source: Ac 220V±10% 50HZ 100W or specified

One plywood box package: Gross weight:65KG, Size: 70*50*90cm
