Product Details:
Payment & Shipping Terms:
|
Model Number: | TW-229 | Iterm: | TW-229 Mouth-actuated Toy Safety Test Equipment |
---|---|---|---|
Minimum Order Quantity: | 1 Set | Delivery Time: | 7 Working Days |
Payment Terms: | T/T, L/C, Western Union | Place Of Origin: | Guangdong,China(Mainland) |
Certificate: | CE | Standard: | EN71-1 , ISO 8124 , ASTM F963 |
High Light: | Toys Durability Tester Endurance Machine,Mouth Actuated Toys Testing Equipment,Touch Screen Toy Safety Test Equipment |

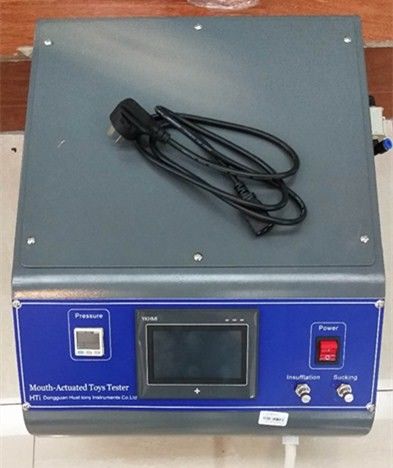

TW-229 Mouth-actuated Toy Safety Test Equipment 120/Min Speed with Touch Control Screen
Purpose of equipment
To prevent mouth moving toys or children's mouthpiece has been mistakenly inhaled and cause a choking
hazard
Technical specifications
1. Instruments to meet at least 295 cubic centimeters within + / -10 cubic centimeters of gas in 5s, and
can be 10 times alternately blowing, suction.
2. Instrument install high precision pressure gauge (digital pressure gauge is optional if client need)
3.Supply gas-type fitting for different toys
4. Gas flow could be controlled by gas valve
5.Power: 220V/50Hz,4A.
6.Dimension (L*W*H):650*400*260mm
7.Weight: 40 kg
Feature:
1. Instruments to meet the 5s at least 295 cubic centimeters within + / -10 cubic centimeters of gas, and can be 10 times alternately blowing, suction toy.
2. Equipped with high precision pressure gauge and suitable for different toys tracheal connector
Gas flow can be ajusted by valve

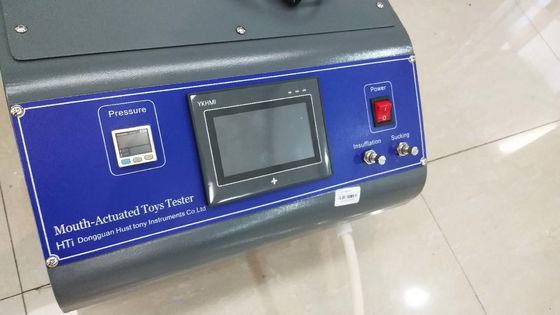

3.PLC Touch Screen Control
Standards:
EN71-1 8.17.2 Other mouth-actuated toys(not suitable for 8.17.1),
ISO 8124-1 4.25,5.20,
ASTM F963 8.13 Durability Test for Mouth-Actuated Toys
Service and Support
Our company focuses on research and development , we were produced some intelligent testing equipments over thirteen years, we continue to provide stable performance, high-quality equipment for product quality testing industry.At present, the company has 14 utility model patent technologies,2 patents for invention and participated in the drafting and formulation of nine national standards.
In cooperation we has a variety of testing units, industries, association partners and friends, accumulated a large number of detection industry insights and contacts, for those friends who just come into testing industry, we can learn from each other to communicate, explore the problems and difficulties encountered in testing.
