Product Details:
Payment & Shipping Terms:
|
| Usage: | Hing Door Testing Machines | Power: | Electronic |
|---|---|---|---|
| Cylinder Stroke: | 800mm | Counter: | 0-999,999 |
| Material: | Stainless Steel And Aluminum | Purpose: | Door Hinge Close And Open Durability Testing |
| High Light: | 100RPM Furniture Testing Machines,0.1º Accuracy Furniture Testing Machines,2600mm height Hinge Door Testing Machines |
||

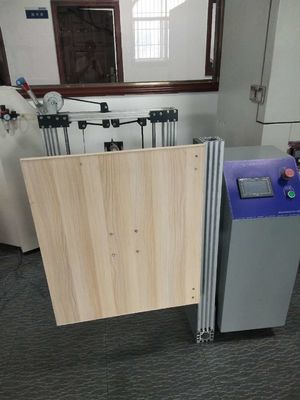

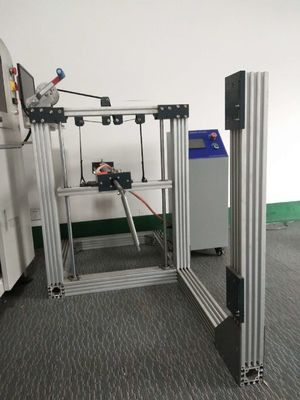

TNJ-026 Kitchen Cabinet Hinges Comprehensive Tester -Door Hinge Durability Testing
Usage: used for durability test for all kinds of kitchen cabinet door with hinges.
Principle: Connect the sliding door which installed the hinge to this tester machine, simulate its process of repeating open and close the sliding door in daily use .Repeat this process after a certain test cycles, then evaluate the hinge whether it exists damage or other effect on using.
It can be used in installed products to test, connect various sliding door and side direction firmly, no producing any acting force to effect the testing.
Lifetime reliability testing of the Hinges
No . Of Cycle to be tested 40,000 (non-stop continuous)
Parameters will be show in the machine control panel:
1) Total Closing angle
2) Soft Closing angle
3) Soft Closing angle time
4) Soft Closing force
Technical parameters:(100% match)
| Parameter | Specification |
| Opening Angle | 102 ° |
| Angle Resolution | Accuracy:±0.1º |
| Force Resolution | ±0.01 N |
| Angular Rotation | Fast Closing:67 ° |
| Soft Closing:>= 25 º | |
| Test speeds | 0 – 100 RPM |
| Door height | 500 - 2600mm |
| Depth adjustment | +3 / -1 mm |
| Side adjustment | +2 / -2 mm |
| Dimensions | 1000 mm x 4000mm x 2800mm |
| Software Features | PLC control |
| Variable speed testing algorithm | |
| Servo motor control | |
| No. of door can be checked at a time | 2 Doors & 4Hinges |
| Accessories | Software and PC (Desktop included) for analysis, fixtures,power line |
