Product Details:
Payment & Shipping Terms:
|
| Instrument Name: | UV Aging Testing Chamber | Inner Space: | 1140*400*380mm |
|---|---|---|---|
| Irradiance (solar Eye): | 0.4~1.0W/m2 Adjustable | PowerWavelength: | UV-A: 315-400mm; UV-B: 280-315mm |
| Application: | UV Aging Testing | Weight:: | 150kg |
| Power: | AC220V/50Hz/4.5KW | Standards: | ASTM D4329, D499,D4587,D5208,G154,G53; ISO 4892-3,ISO 11507,EN534 , EN 1062-4,BS 2782; JIS D0205 |
| High Light: | lab test machine,lab test equipment,ASTM D4329 UV Aging Testing Chamber |
||

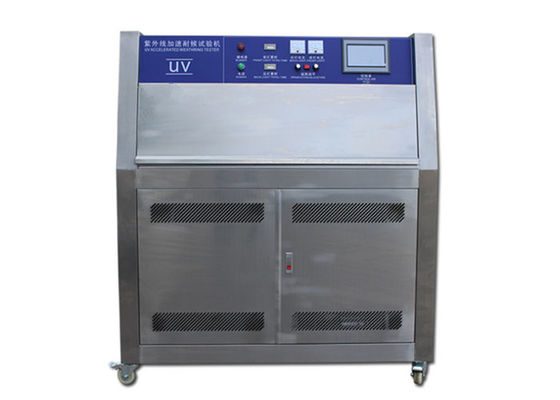

ASTM Uv Aging Test Chamber , Lab Test Machine For Products Weather Resistance Testing
UV Aging Testing Chamber For Products Weather Resistance Testing
Application:
UV aging chambers are used to simulate sunlight, moisture and temperature to measure the damaging
effects to materials (fading, cracking, peeling, chalking, oxidation, etc.), widely used in weather
resistance of materials.
Specification:
1. Centre distance Centre distance between the lamp: 70mm
2. Distance between sample and lamp: 50 ± 3mm
3. Wavelength: UV-A: 315-400mm; UV-B: 280-315mm
4. Irradiance (solar eye): 0.4~1.0W/m2 adjustable
5. Temperature Range: Room Temperature +70 ℃
6. Temperature Uniformity: ≤± 1.0 ℃
7. Temperature Fluctuation: ≤± 0.5 ℃
8. Humidity Range: 55%-95%RH
9. Power: AC220V/50Hz/4.5KW
10. Main unit weight: 150 Kg
Standards:
ASTM D4329,D499,D4587 ,D5208 ,G154, G53; ISO 4892-3,ISO 11507; EN534 ,EN
1062-4,BS 2782; JIS D0205; SAE J2020,GB/T14522-93
