BIFMA X5.1 Furniture Testing Machines For Chair Backrest Tilt Mechanism Testing

China BIFMA X5.1 Furniture Testing Machines For Chair Backrest Tilt Mechanism Testing supplier

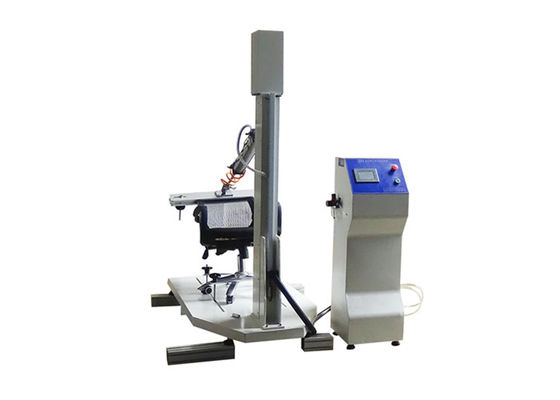

Large Image :  BIFMA X5.1 Furniture Testing Machines For Chair Backrest Tilt Mechanism Testing

Product Details:

Place of Origin: China
Brand Name: TONY
Certification: BIFMA X5.1
Model Number: TNJ-006

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood box
Delivery Time: 8 workdays
Payment Terms: T/T, Western Union
Supply Ability: 50 set per month
Contact Now
Detailed Product Description
Impact Head Weight:: Impact Head Component Weight:25kg Seat Impactor Diameter:: 200mm
Seat Height: : 30~65cm Loading Times: : 0~99999 Times, Adjustable
Strength Adjust:: Strength Adjust: Pressure Adjust Beams Lifting Way:: Electric Lift
Standards: ANSI/BIFMA X5.1-2011 ,EN 1335: 2000

Furniture Quality Tester For Chair Backrest Tilt Mechanism Testing With BIFMA X5.1


Production Introduction:


Bifma X5.1 Chair backrest Tilt Mechanism Tester is applied to all chairs with backward function. It's used for testing the durability of the chair with backward function under the loading status. Test result: Loss function after the test shall not be qualified (based on customer specified requirements can be judged).




Test purpose:

Evaluate durability of the chair with backward function under the loading status.
Suitable Test object: All office chairs with back backward function.





Technical parameters:

Test speed: 10-30CPM ,
chair side load 225 lbs weight,
Test times 300, 000 times
Force: 0-1000N adjustable 0-1000N adjustable
Load Angle of armrest: 10 degrees
Seat height: 30~65cm
Loading times: 0~99999 times, adjustable
Strength adjust: pressure adjust
Control: PLC, text display
Ar supply: Seat surface height kgf/cm^2 or above
Power: 1 AC 220V 50Hz 5A





Suitable Standards:
ANSI/BIFMA X5.1-2012 ,EN 1335: 2000




Test Setup:
1. The chair or fixture with attached tilt mechanism shall be restrained on a test platform. Figure 10 shows one acceptable method of restraint.
2. If adjustable features are available, all adjustments shall be set at normal use conditions
3. A cycling device shall be attached to the chair or fixture at any location appropriate to apply a controlled (push and/or pull) motion
4. A test load of 102 kg (225 lb.) shall be secured on the center of the seat (or equivalent location on the fixture).
5. Adjust the cycling device to move the mechanism between the front and back stops, without overriding or impacting either stop




Reference test method
Standards: BIFMA X5.1-2011-13 Arm Strength Test - Vertical - Static :
13.1 Applicability: This test applies to all chairs with arms.
13.2 Purpose of Test: The purpose of the test is to evaluate the ability of a chair and arm to withstand stresses caused by applying vertical forces on the arm(s).
